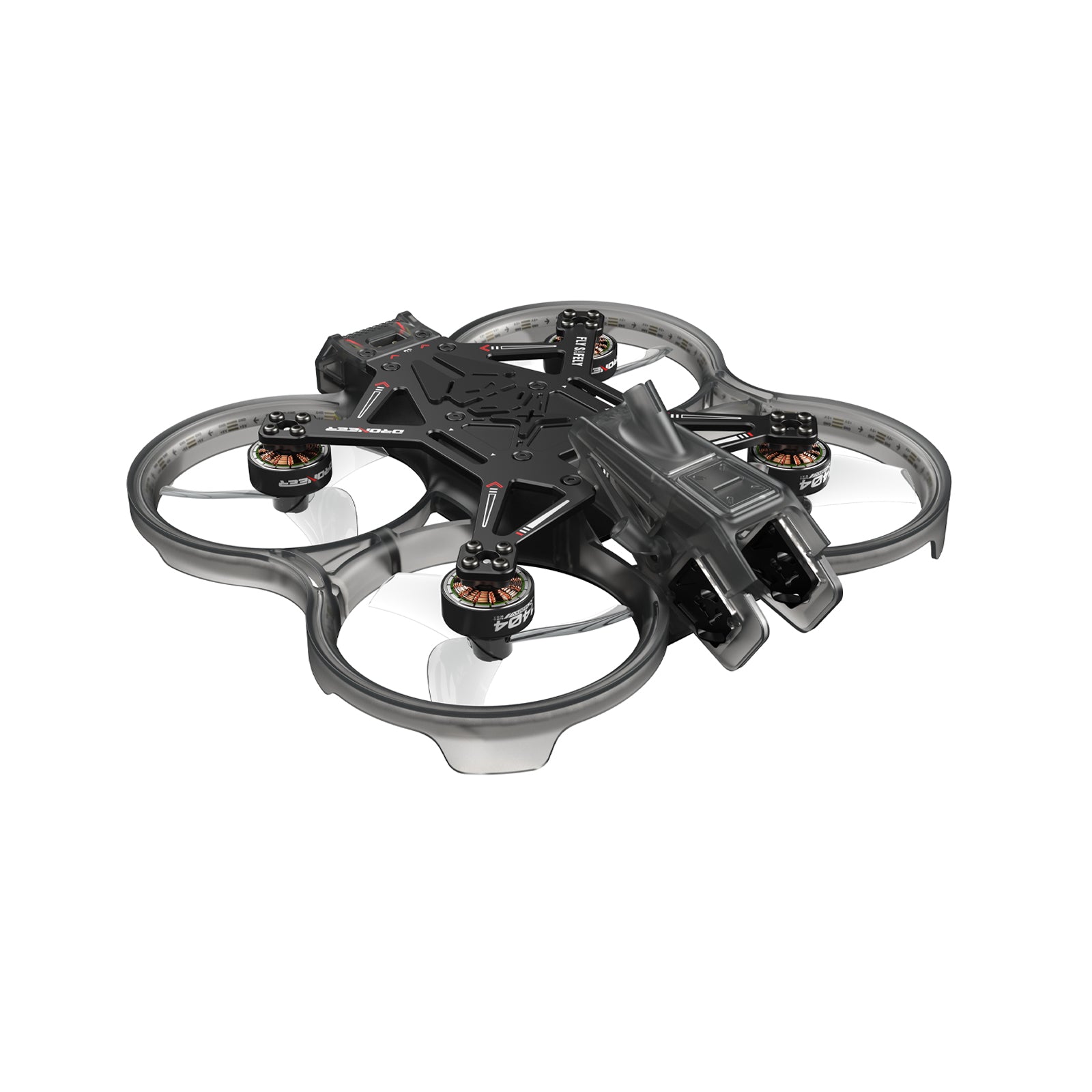

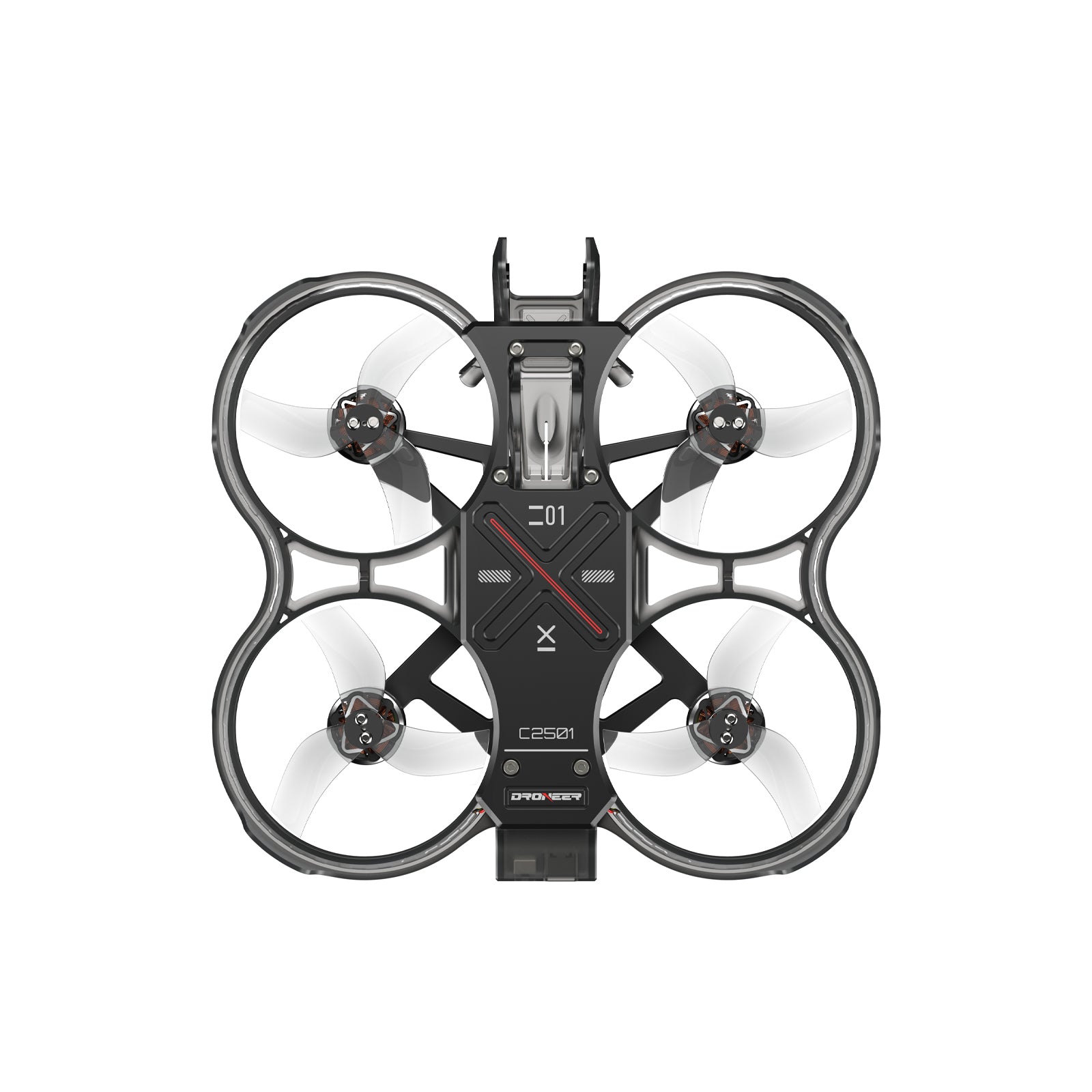

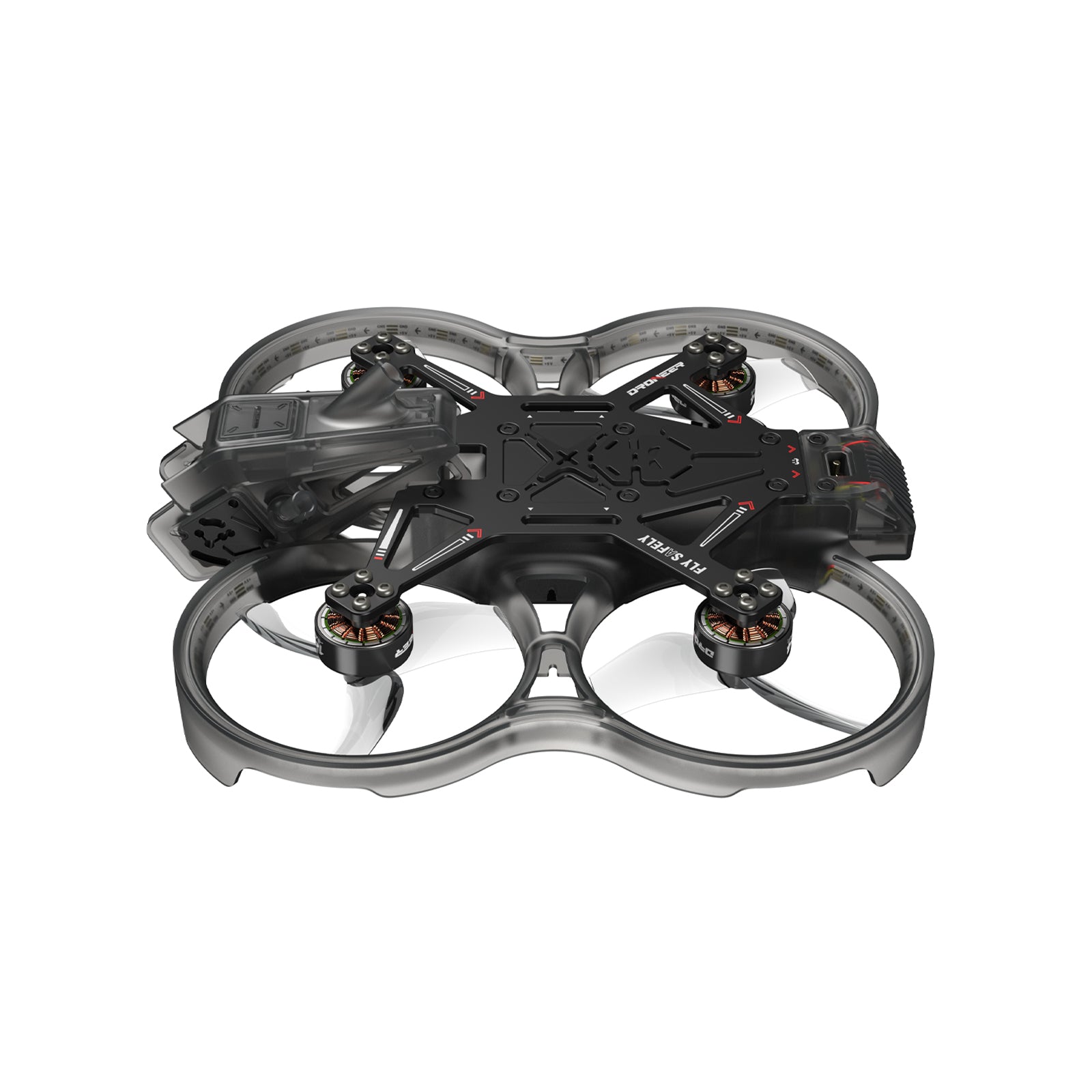

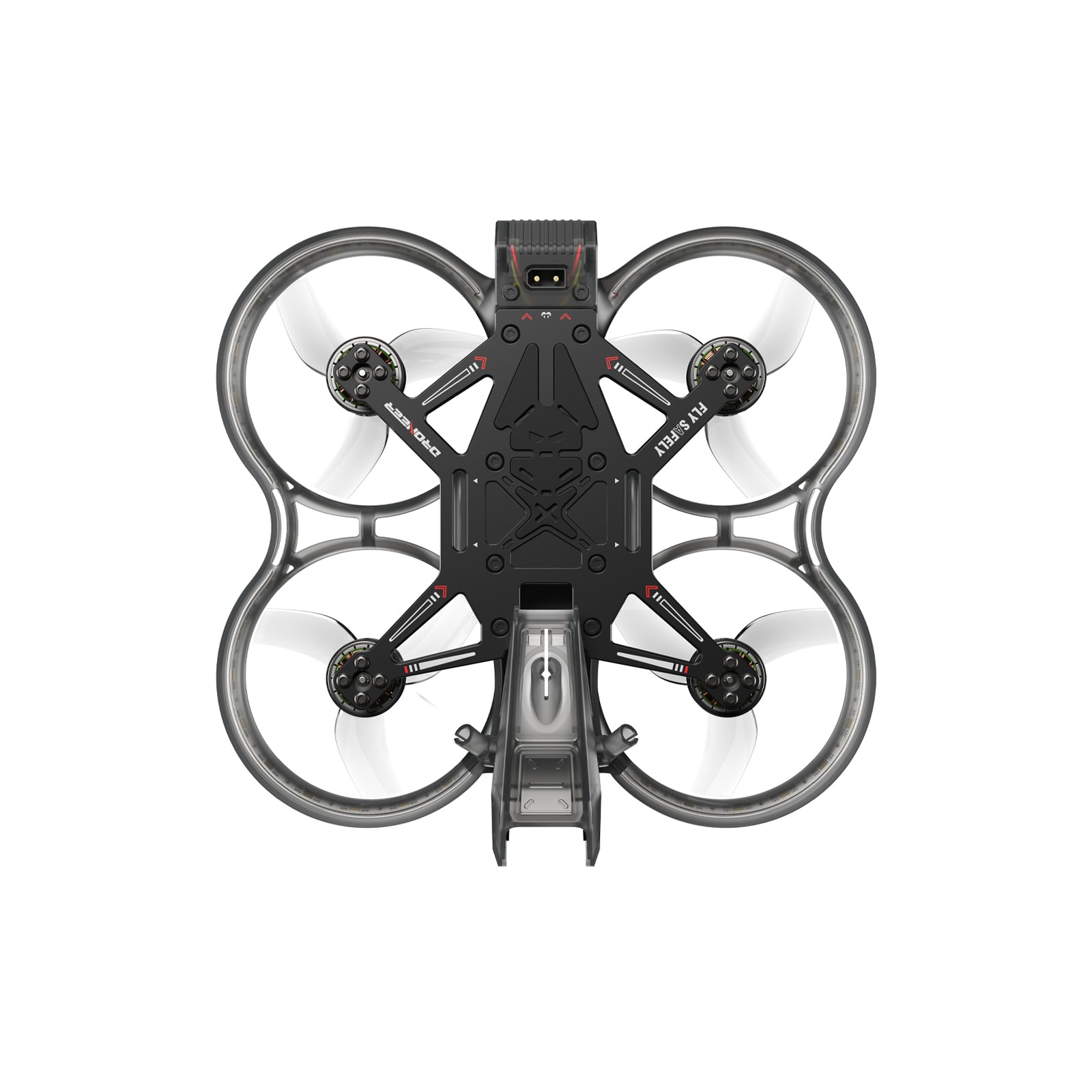

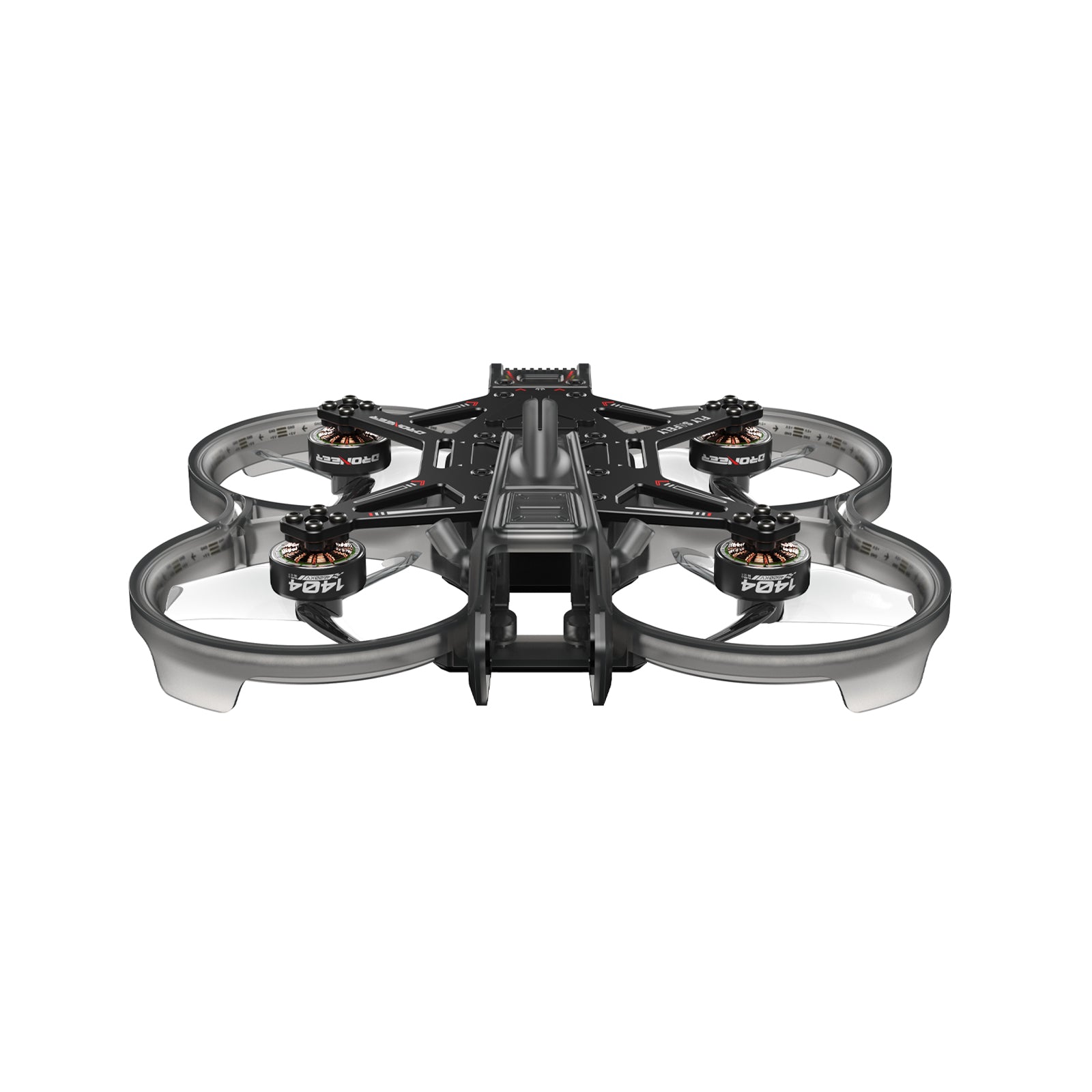

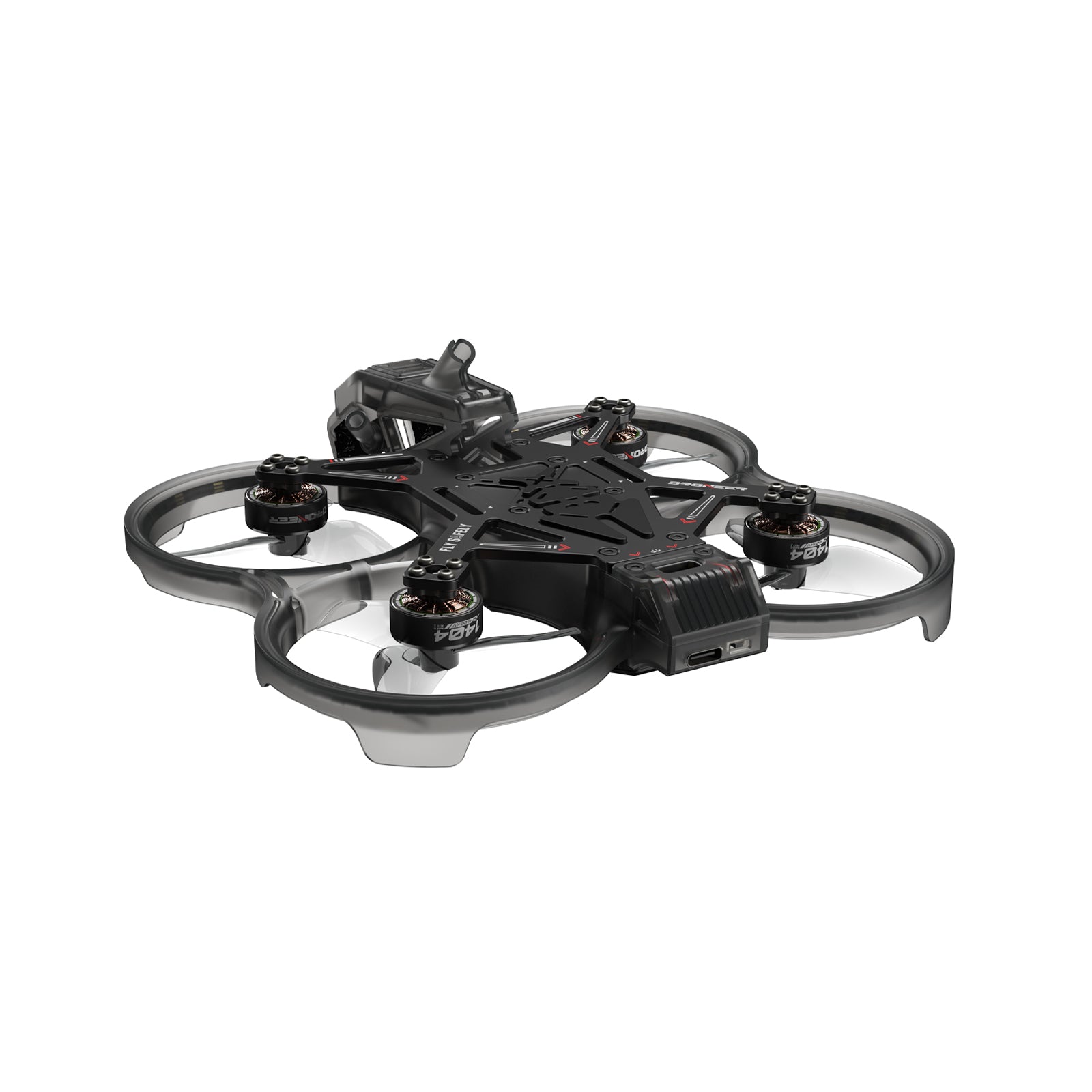

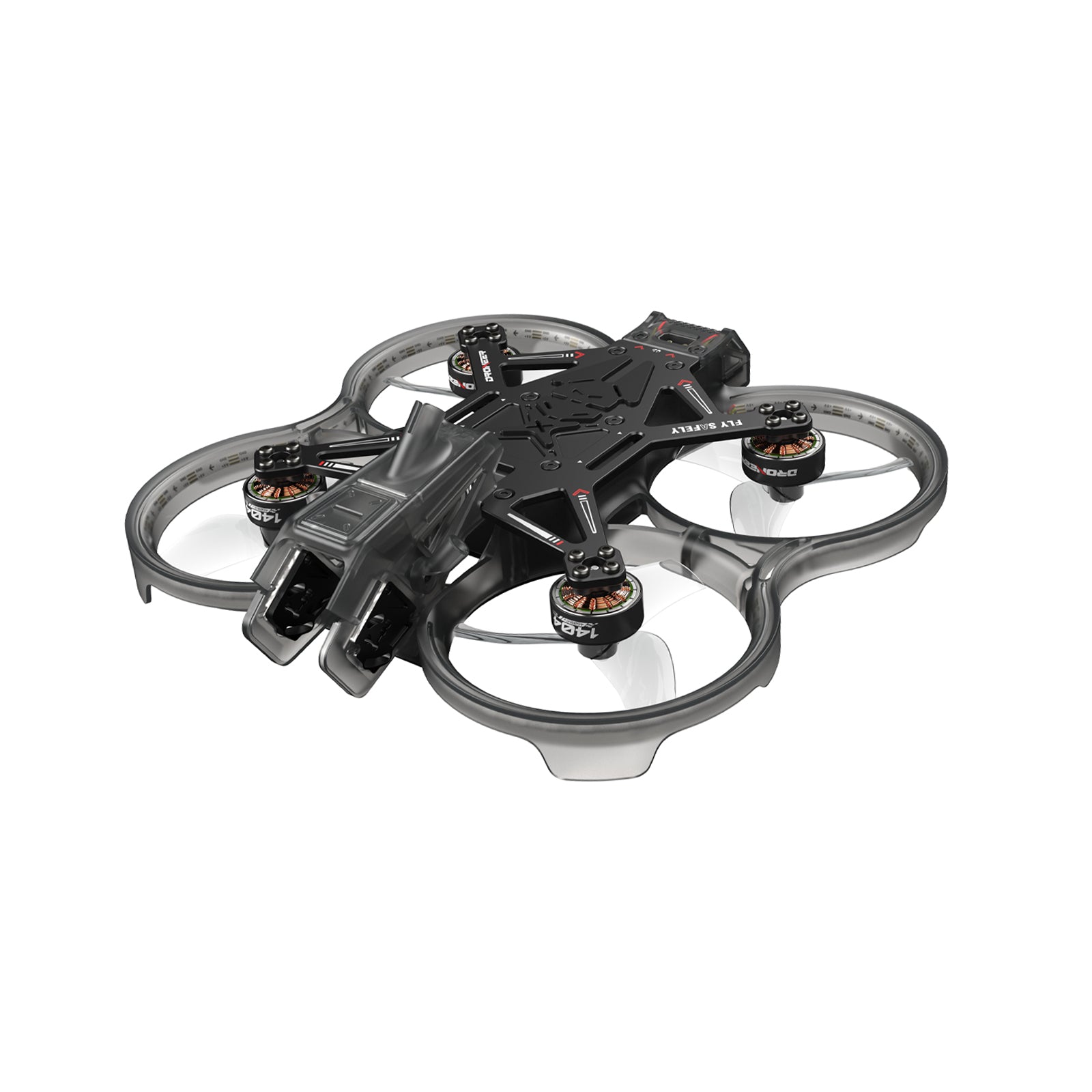

Droneer C2501 PNP Cinewhoop
The Droneer C2501 is the ultimate choice for your first FPV experience—specially tuned for razor-sharp agility and sub-250g safety. Pro-pilot tuned PID profiles match perfectly with top-tier hardware for unshakeable stability
Key Features:
- F722 AIO Flight Controller with 40A ESC: Ultra-compact F722 AIO integrates FC and 40A ESC. Delivers precise, responsive control, smooth handling, and stable flight for tight gates and freestyle maneuvers.
- Crash-Resistant Prop Guards: One-piece ducted guards with high-strength carbon fiber frame. Impact- and wear-resistant, they protect pilots, props, and motors, ensuring safer, worry-free indoor and outdoor flights.
- Modular & Expandable System: Foldable antennas, USB-C VTX port, and 512GB storage support instant setup and HD recording. Modular design allows easy DIY upgrades, while RGB lighting adds style for versatile flying.
WHICH VERSION IS RIGHT FOR YOU?
Key differences:
C2501 O4 PRO features the cutting-edge DJI O4 digital system for stunning 4K/120fps clarity¹ and an ultra-compact Droneer F722 AIO for seamless cinematic flight. It comes in four receiver options: O4 Pro, ELRS 2.4GHz, ELRS 915MHz, and TBS Crossfire.
C2501 Analog features a high-power 1.6W 5.8G VTX and a FOXEER Micro Toothless camera — the ultimate setup for zero-latency indoor and proximity cinematic shooting. It comes in three receiver options: ELRS 2.4GHz, ELRS 915MHz, and TBS Crossfire.
C2501 PNP is our most versatile cinewhoop foundation, featuring the same F722 AIO and 1404 3650KV motor stack but stripped of the VTX, Camera, and Receiver. It gives you the freedom to build your own ultra-lightweight cinematic rig.
C2501 O4 Pro
|
C2501 Analog
|
C2501 PNP
|
|
|---|---|---|---|
| VTX | O4 Pro | Droneer 5.8G 1.6W Analog | None |
| Camera | O4 Pro 1/1.3-inch CMOS 4K/120fps Video 155° Ultra-Wide FOV 10-bit D-Log M Color Mode |
FOXEER Micro Toothless 1/2-inch CMOS 1200TVL |
None |
| VTX Antenna | O4 Pro | Maple 10cm 5.8GHz Analog | None |
| Receiver | 4 options (O4 Pro/ ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | 3 options (ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | None |
Droneer C2501 PNP Cinewhoop
TAKE A CLOSER LOOK
4K STABILIZED VIDEO
Protective Design
DIY RGB Lighting
Foldable Antennas
All-New F722 ESC40A AIO
Born to Fly Free

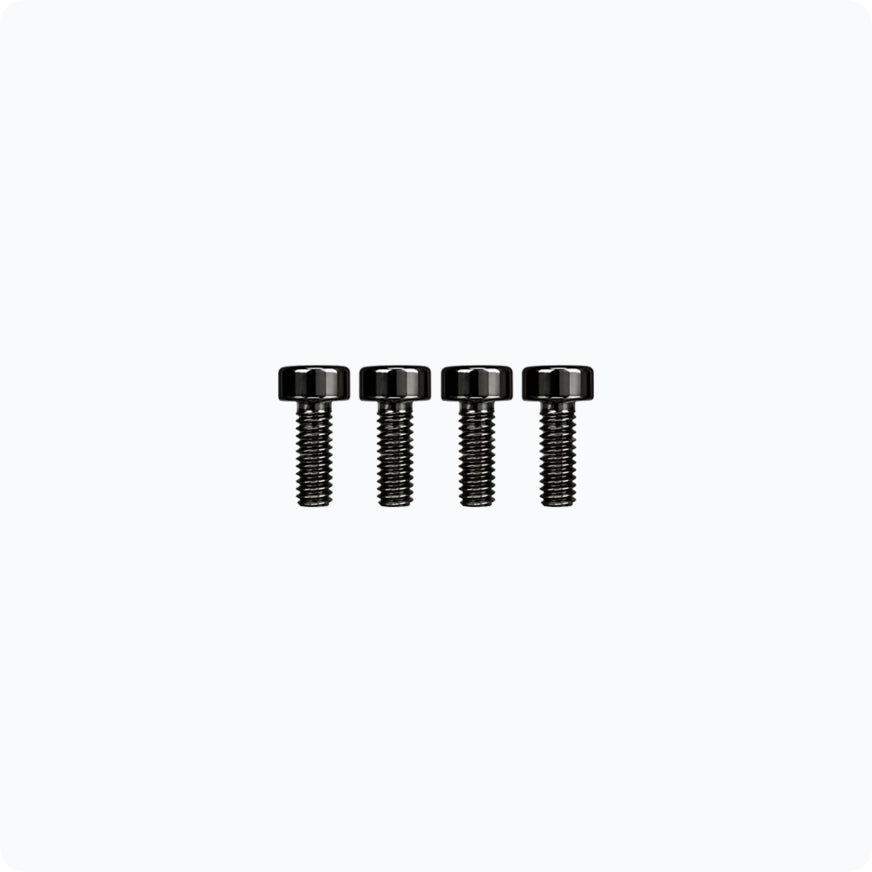

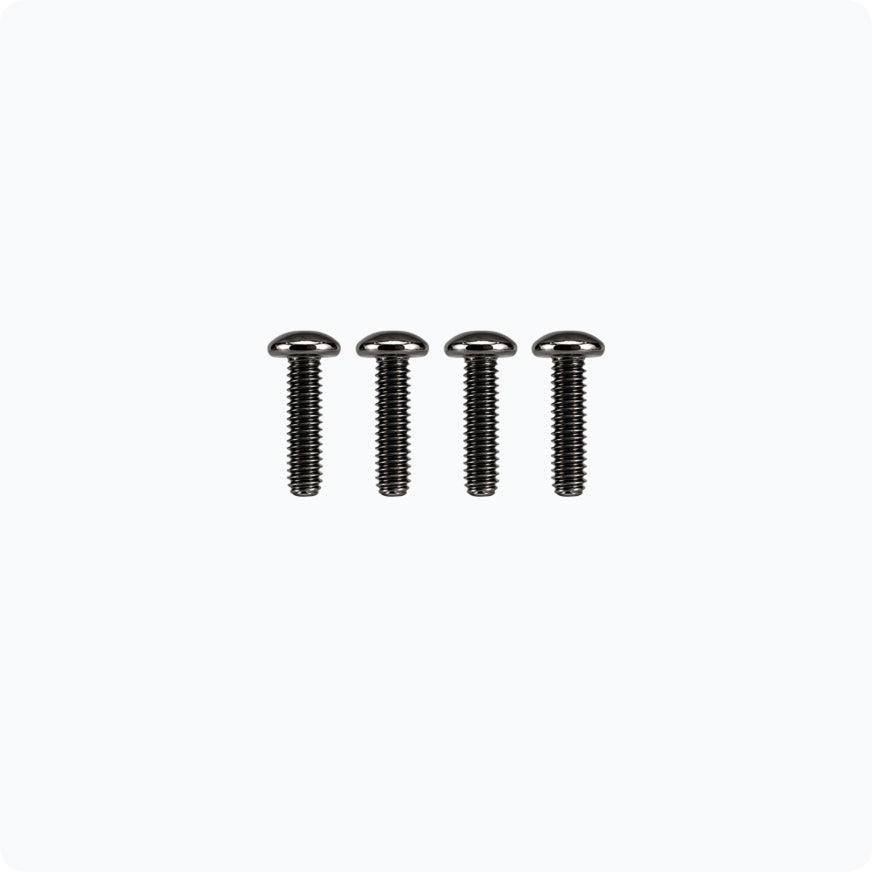

IN THE BOX
SPECS
Aircraft
| AIO | Droneer F722 AIO |
| MCU | STM32F722 |
| Barometer | SPA06-003 |
| Gyro | ICM42688P |
| OSD | AT7456E |
| Blackbox | 16Mb |
| Receiver Options | ELRS/TBS/O4 Pro |
| Motor | Droneer 1404 3650KV Brushless Motor |
| Propeller | HQProp DT63 |
| GNSS | GPS, Galileo, BeiDou, GLONASS |
| Battery Connector | XT30 |
| Dimensions | 170*165*41mm (L*W*H) |
| Weight | 189g |
| Max Takeoff Weight | 848g |
| Wheelbase | 120mm |
| Middle plate thickness | 2.5mm |
| Bottom plate thickness | 2mm |
| Max Takeoff Altitude | 6000m |
| Max Speed | 125km/h |
| Max Flight Time | 7.5 min |
Video Transmission (O4 Pro Ver.)
| Video Transmission System | DJI O4 Air Unit Pro |
| Image Sensor | 1/1.3-inch CMOS Sensor |
| Lens | FOV: 155° |
| Video Format | MP4 |
| Max Video Bitrate | 130 Mbps |
| Video Resolution | Up to 4K @ 120 fps |
| Color Mode | Normal Mode/D-Log M |
| Live View Quality | 1080P@30/48/50/60/100fps |
| Max Video Transmission Range | 15 km (FCC), 8 km (CE), 8 km (SRRC) |
| Antenna | 2 antennas, 2T2R |
| Stabilization | RockSteady 3.0+/Off (Gyroflow supported) |
| Operating Frequency | 5.170-5.250 GHz & 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 5.1GHz＜23dBm(CE)/ 5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC) |
| Built-in Storage | 4GB |
| Supported SD Cards | microSD (up to 512 GB) |
Video Transmission (Analog Ver.)
| Video Transmission System | Droneer 5.8G 1.6W VTX |
| VTX Antenna | Single Antenna 10cm 5.8GHz Maple |
| Image Sensor | Sony 1/2" CMOS |
| Resolution | 1200TVL |
| Aspect Ratio | Switchable 4:3 / 16:9 |
| Lens | FOV: 4:3 WIDE FOV-H: 145° FOV-D:180° 4:3 NARROW FOV-H: 125° FOV-D:160° 16:9 FOV-H: 145° FOV-D:165° |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Dimension | 19*19mm |
FAQ
What are the differences between the O4 Pro, VTX, and PNP versions?
O4 PRO Version: The premium "All-in-One" choice. It comes pre-installed with the latest DJI O4 Pro digital video transmission system, offering 4K/120fps onboard recording and ultra-low latency. Perfect for those who want the best cinematic quality.
VTX Version: Designed for pilots who already have their own FPV goggles. It includes the flight stack and a 5.8G 1.6w analog video transmitter but requires you to bind it to your existing gear.
PNP (Plug-and-Play) Version: The "stripped-down" professional choice. It comes without a radio receiver and a VTX. You will need to solder your own receiver (like ELRS or TBS Crossfire) to match your specific remote controller.
What is the recommended battery for this 2.5" Cinewhoop?
Regardless of the version, we recommend a 4S 650mAh - 850mAh LiPo.
Pro Tip: Use 650mAh for the Analog version to keep it ultra-light, and 850mAh for the O4 PRO to handle the extra power draw of the digital system.
Does this fpv drone come "Ready to Fly" (RTF)?
No, O4 Pro and Analog versions are BNF (Bind-and-Fly). You will need compatible FPV Goggles and a Radio Transmitter to fly. If you are a complete beginner, please ensure your controller protocol matches the receiver you select (e.g., ELRS 2.4G). Note: the battery also must be purchased separately.
Is the flight controller pre-tuned and ready to fly?
Yes! The C2501 comes with the F722 AIO flight controller and BetaFlight firmware installed, so you can take off in Horizon (self-level) mode right out of the box. For the smoothest performance, you can adjust PID and filter settings in BetaFlight to match your prop size and flying style.
Is it safe for indoor filming?
Absolutely. The full-wrap propeller guards are made of high-ductility polycarbonate. They not only protect your surroundings and people but also provide a "bump and go" resilience if you kiss a wall.
Is the O4 PRO compatible with my Analog Goggles?
No. The O4 PRO and Digital VTX versions require specific digital goggles. The Analog version is only compatible with analog receivers. Please double-check your headset compatibility before purchasing!
Can it carry a external action camera (like a GoPro)?
While this 2.5" fpv drone has high-KV brushless motors, it is optimized for "Naked" cameras or its internal O4 PRO recording. Carrying a full-sized GoPro (150g+) will significantly impact agility and motor heat. For the best experience, let the O4 PRO do the heavy lifting!
Does the O4 PRO version fly differently than the Analog version?
The O4 PRO version is slightly heavier due to the advanced cooling and camera hardware. While it offers the best image, the Analog version is the "lightest," giving you a bit more "punch" and agility during aggressive maneuvers.Both are pre-tuned for a smooth experience out of the box.
