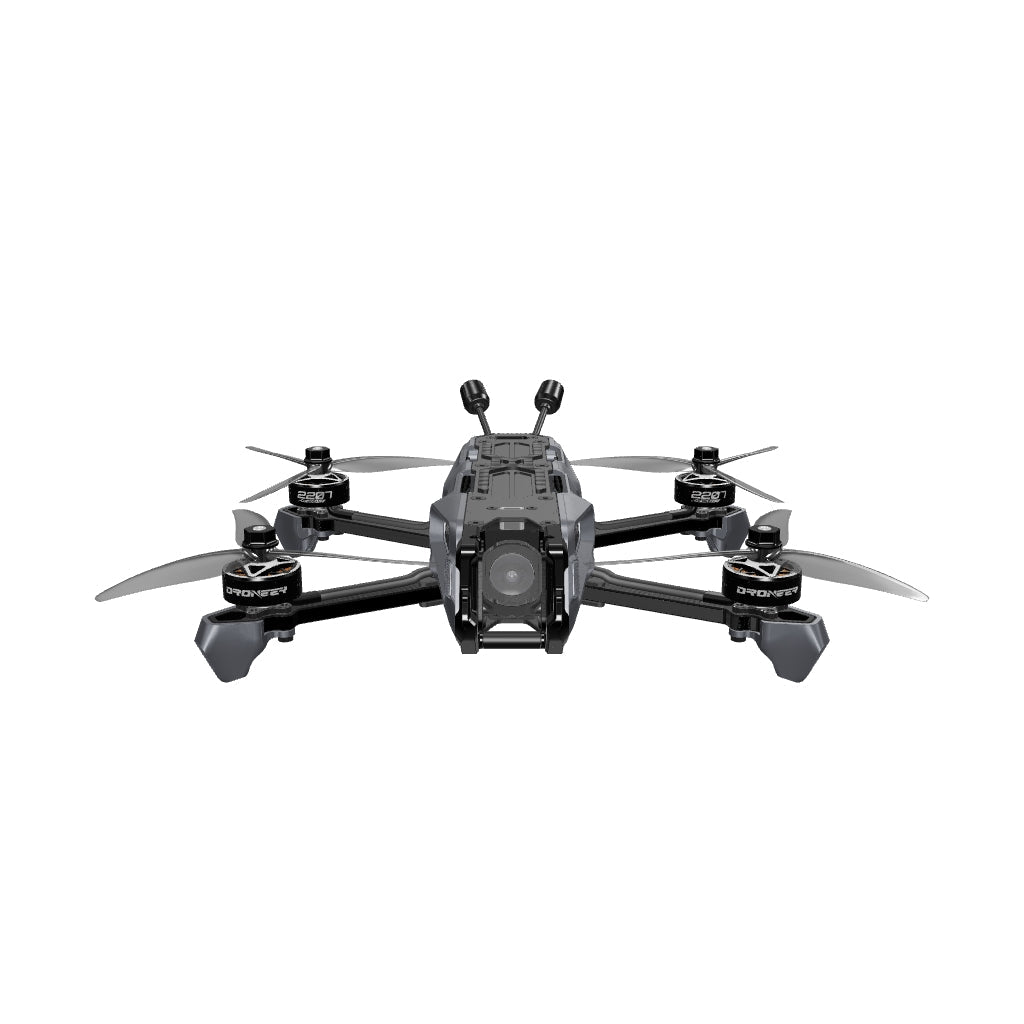

Droneer X501 Analog FPV Drone
The Droneer X501 is the ultimate all-rounder—specially tuned for aggressive freestyle and smooth long-range cruising. Pro-pilot tuned PID profiles match perfectly with top-tier hardware
Key Features:

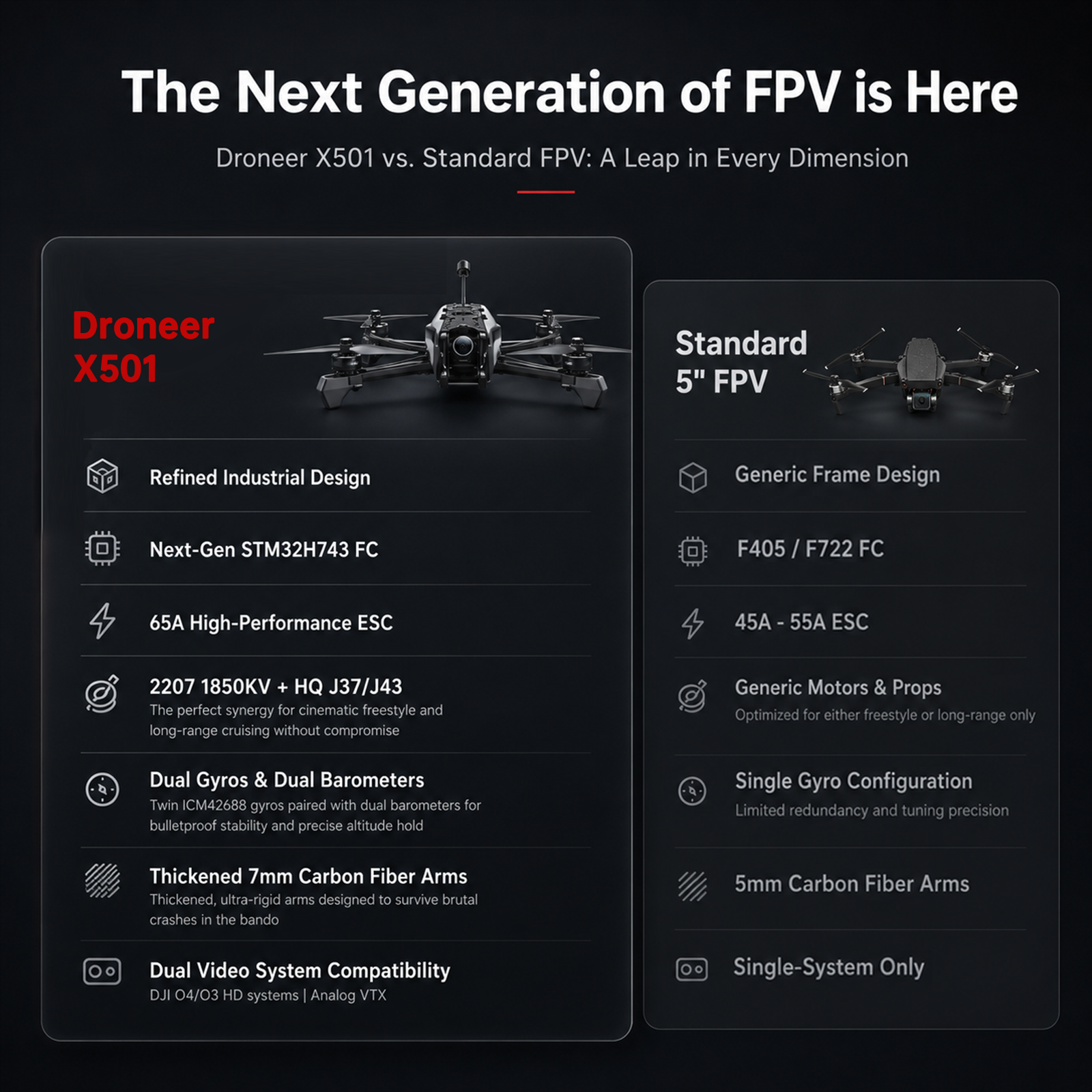

- H743 Flagship Flight Controller: Powered by the STM32 H743 main controller, delivering about 220% the processing speed of F722. Provides millisecond-level precision and flawless control for freestyle maneuvers.
- Prop-Free 155° Ultra-Wide Analog FPV: 155° no-prop FOV with Micro Toothless camera and Droneer 1.6W 5.8G analog VTX. 10KM max range, 3ms ultra-low latency, for clean, immersive first-person flight shots.
- High-Power 2207 Motors & 65A ESC: Stronger propulsion enables speeds up to 180km/h. Flips, rolls, and sharp turns feel smooth and responsive, with up to 27-min flight time for uninterrupted freestyle action.
- High-Precision GPS Module: Features a precision GPS with optimized layout and rapid satellite acquisition, providing stable flight, accurate positioning, and confidence on long-range or high-speed routes.
- Dual Gyros & Baros for Stability: Equipped with dual gyros and barometers, the redundant system delivers precise sensing, stable altitude, and reliable control under aggressive or complex flight conditions.
- Aluminum Alloy Lens Protection: Built with a lightweight aluminum alloy lens protection mount for stronger front-end durability. Protects the camera from crashes and hard impacts during aggressive flying.
WHICH VERSION IS RIGHT FOR YOU?
Key differences:
The X501 O4 Pro drone features the advanced DJI O4 Pro digital system, delivering crisp 4K/120fps video with ultra-low latency. It supports 10-bit D-Log M color and a 155° ultra-wide FOV for stunning detail. With up to 27 minutes of flight time, it’s available in four receiver options: O4 Pro, ELRS 915MHz, ELRS 2.4GHz, and TBS 915MHz.
The X501 Analog fpv features a high-power 1.6W VTX with a 1/2-inch 1200TVL CMOS camera, a 7cm 5.8GHz antenna and a built-in M10 GPS. It is the lightest in the lineup, offering the most aggressive power-to-weight ratio for technical freestyle. The drone comes in three receiver options: ELRS 915Mhz, ELRS 2.4Ghz, and TBS 915Mhz.
The X501 PNP version is built for pilots who want full customization. With the VTX, camera, antenna, receiver, and GPS removed, it offers a clean, versatile platform. Its ultra-lightweight, optimized frame is designed for high-speed agility and precise maneuvers.
X501 O4 Pro
|
X501 Analog
|
X501 PNP
|
|
|---|---|---|---|
| VTX | O4 Pro | Droneer 5.8G 1.6W Analog | None |
| Camera | O4 Pro 1/1.3-inch CMOS 4K/120fps Video 155° Ultra-Wide FOV 10-bit D-Log M Color Mode |
FOXEER Micro Toothless 1/2-inch CMOS 1200TVL |
None |
| VTX Antenna | O4 Pro | Maple 7cm 5.8GHz Analog | None |
| Receiver | 4 options (O4 Pro/ ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | 3 options (ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | None |
| GPS | M10G 5883 | M10G 5883 | None |
Droneer X501 Analog FPV Drone
TAKE A CLOSER LOOK
Dive into flying

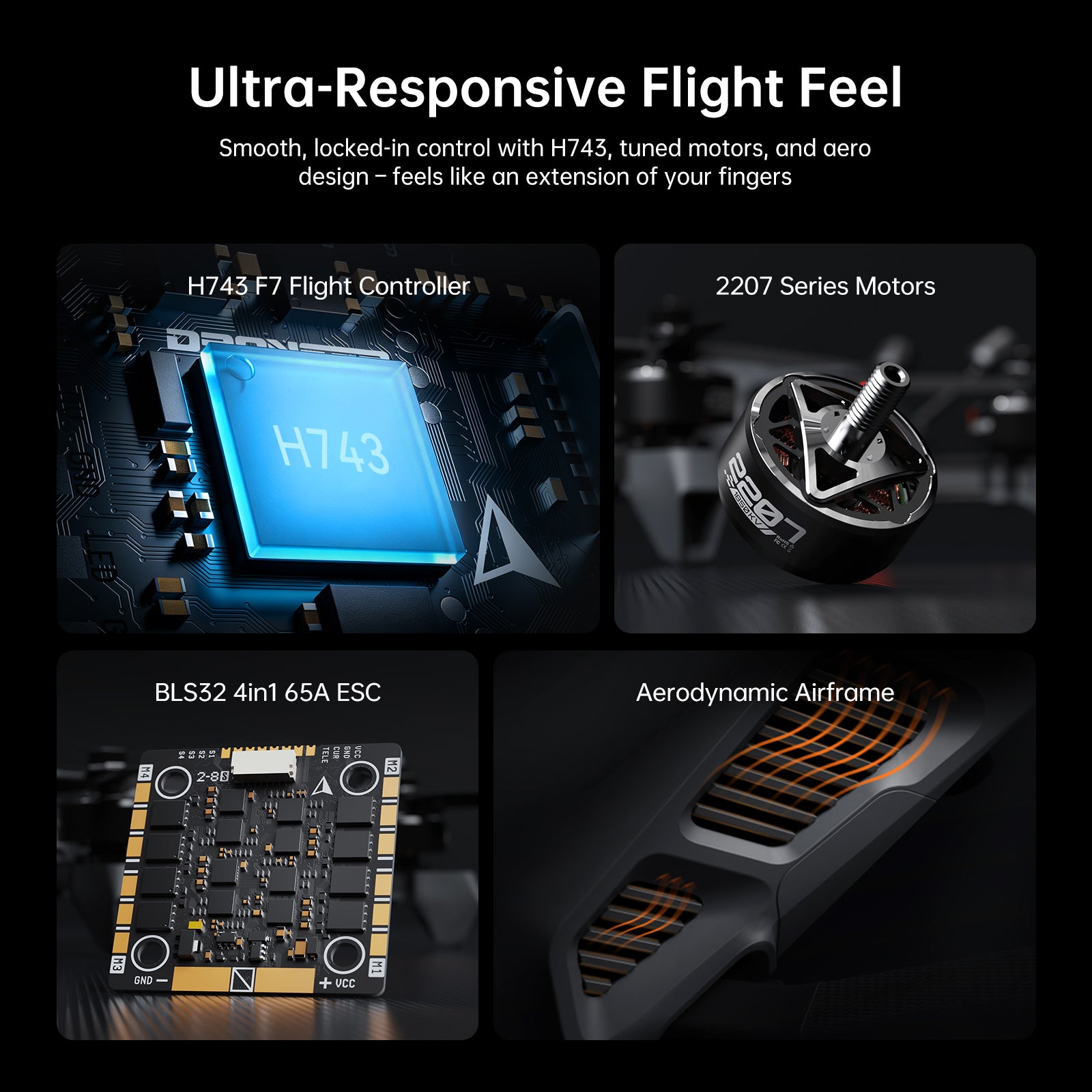

High-performance FC
Flagship O4 Pro VTX
Super-Wide 155° FOV
High-Performance Brushless Motors
Aluminum Alloy Lens Protection

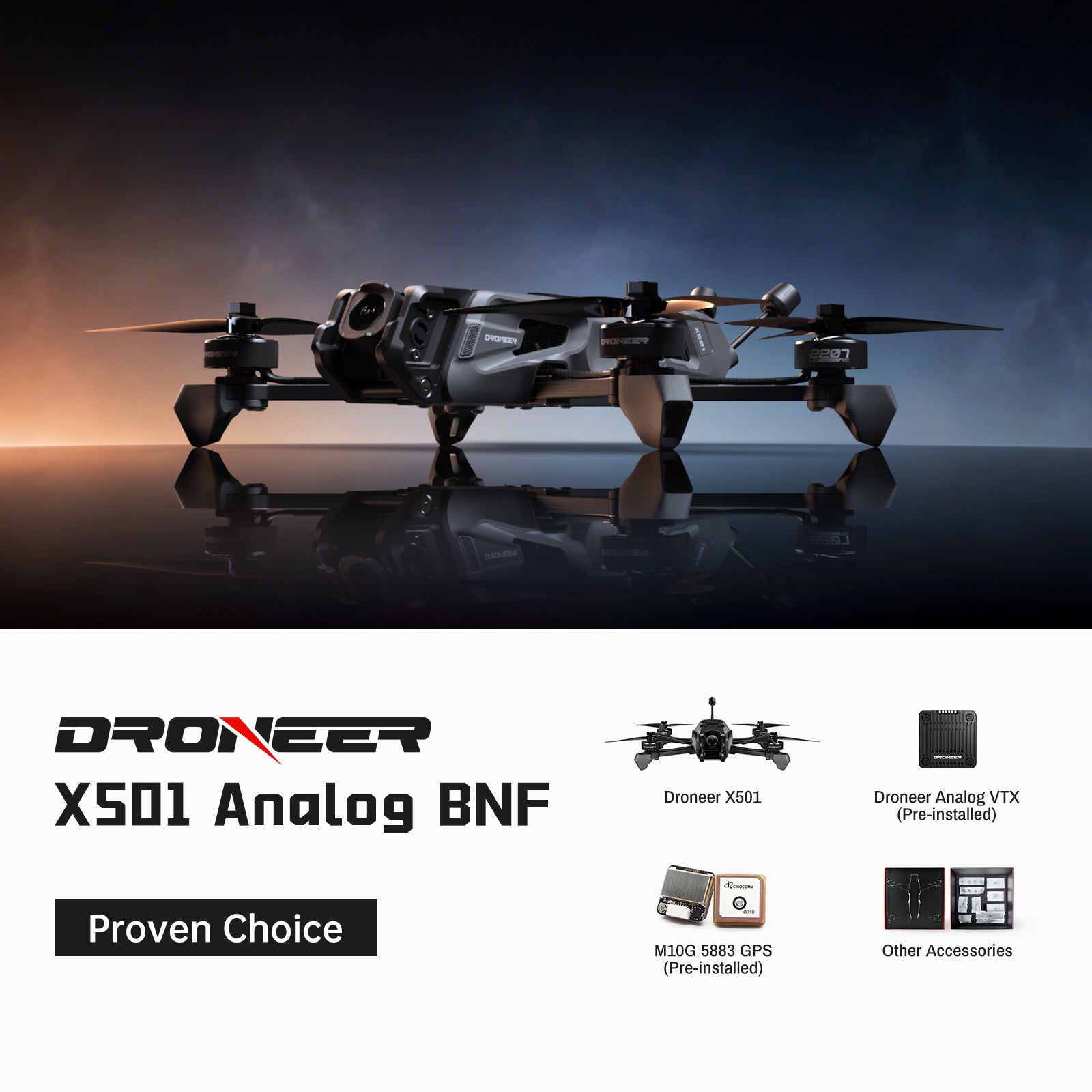

IN THE BOX
SPECS
Aircraft
| FC | Droneer H743 FC |
| MCU | STM32H743 |
| Geometry | X Type – But Always Clear, No Props in Sight |
| Barometer | MS5611 + SPA06-003 |
| Gyro | ICM42688P*2 |
| OSD | AT7456E |
| Blackbox | 32Mb |
| ESC | Droneer ESC65A 4-in-1 BL32 2-8S V1 |
| Motor | Droneer 2207 1850KV |
| Propeller | HQ J40 |
| GPS | M10G 5883 (PNP Not Include) |
| GNSS | GPS, Galileo, BeiDou, GLONASS |
| Battery Connector | XT60 |
| Receiver Options | ELRS/TBS/O4 Pro |
| Dimensions | 236*226*41 mm |
| Weight | 510 g |
| Max Takeoff Weight | 3KG |
| Wheelbase | 225mm |
| Max Takeoff Altitude | 6000m |
| Max Speed | 180 km/h |
| Max Flight Time | 27 min |
| Top plate thickness | 2mm |
| Middle plate thickness | 2mm |
| Bottom plate thickness | 2mm |
| Arm thickness | 7mm |
Video Transmission (O4 Pro Ver.)
| Video Transmission System | DJI O4 Air Unit Pro |
| Image Sensor | 1/1.3-inch CMOS Sensor |
| Lens | FOV 155° |
| Video Format | MP4 |
| Max Video Bitrate | 130 Mbps |
| Video Resolution | Up to 4K @ 120 fps |
| Color Mode | Normal Mode/D-Log M |
| Live View Quality | 1080P@30/48/50/60/100fps |
| Max Video Transmission Range | 15 km (FCC), 8 km (CE), 8 km (SRRC) |
| Antenna | 2 antennas, 2T2R |
| Stabilization | RockSteady 3.0+/Off (Gyroflow supported) |
| Operating Frequency | 5.170-5.250 GHz & 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC)) |
| Built-in Storage | 4GB |
| Supported SD Cards | microSD (up to 512 GB) |
Video Transmission (Analog Ver.)

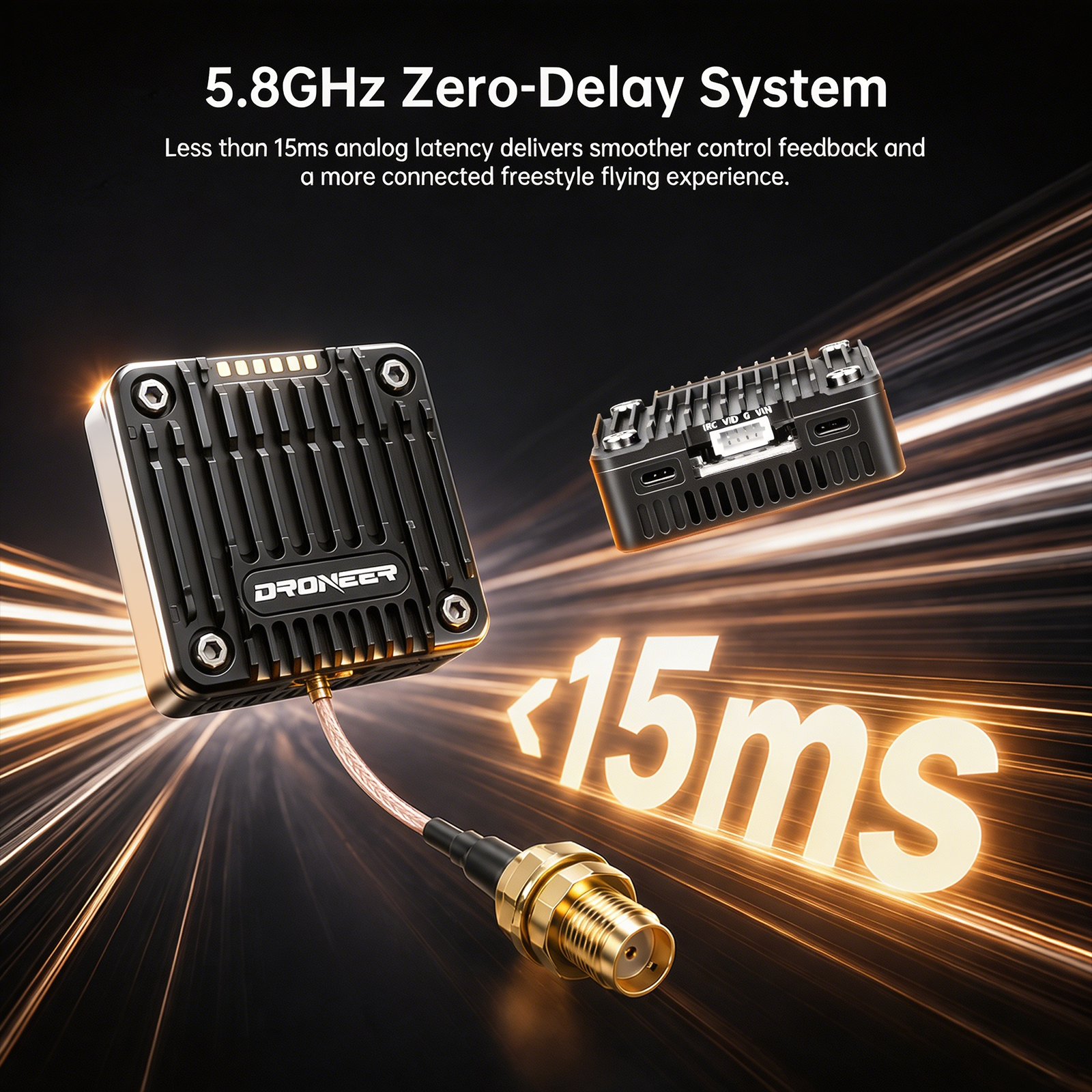

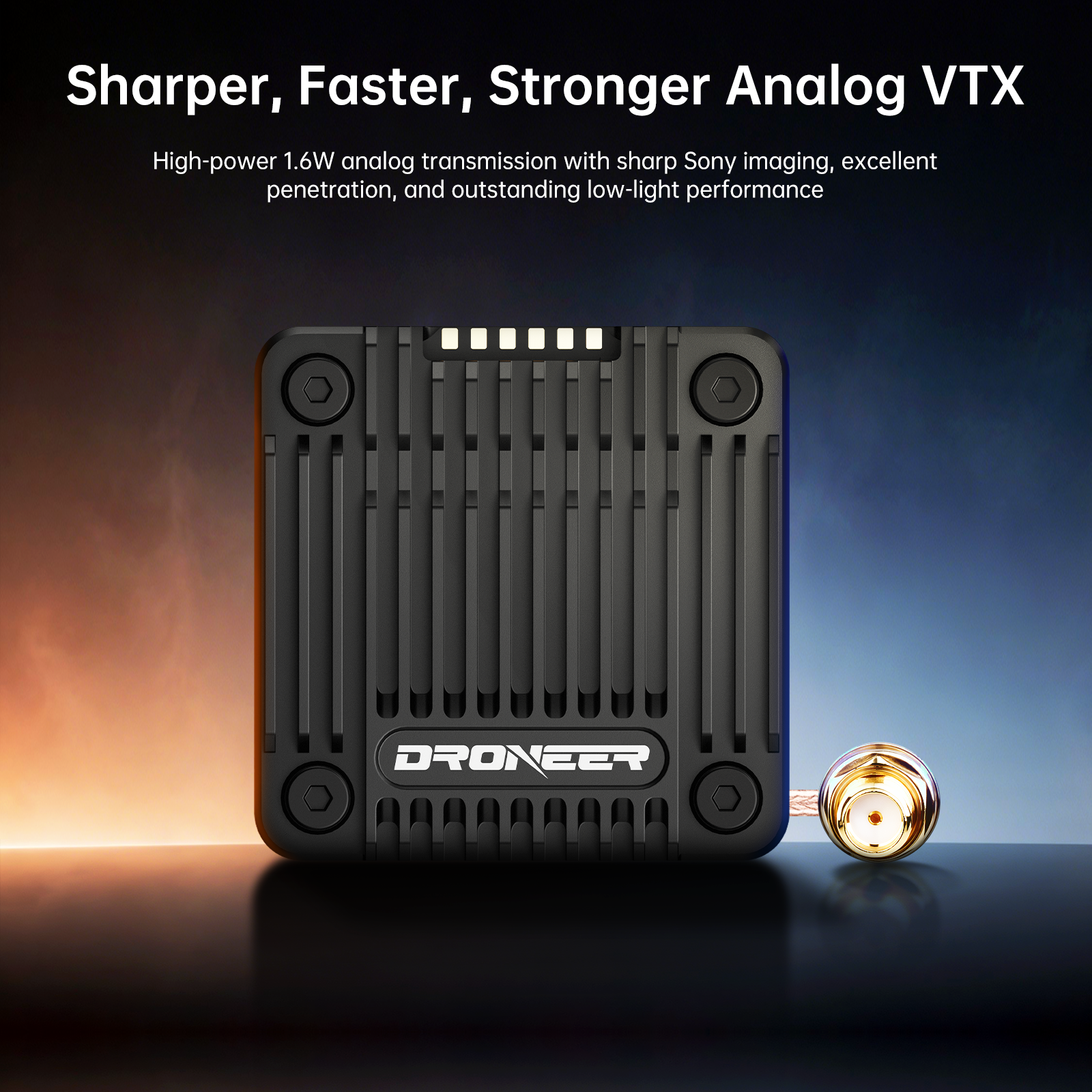

| Video Transmission System | Droneer 5.8G 1.6W VTX |
| VTX Antenna | Single Antenna (Maple 7cm 5.8GHz) |
| Image Sensor | Sony 1/2" CMOS |
| Resolution | 1200TVL |
| Aspect Ratio | Switchable 4:3 / 16:9 |
| Lens | FOV: 4:3 WIDE FOV-H: 145° FOV-D:180° 4:3 NARROW FOV-H: 125° FOV-D:160° 16:9 FOV-H: 145° FOV-D:165° |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Dimension | 19*19mm |
FAQ
What about shipping, sales tax, and customs fees?
For most regions, the combined shipping and customs fee is a flat $40. Due to international import regulations for drone products, these costs are unfortunately unavoidable.
In a small number of European countries, local customs may charge an additional €10–€20 upon delivery. However, for the vast majority of regions, no extra customs fees are required.
Also, all orders placed through our official website are sales tax free.
Do you ship worldwide? How long does delivery take?
Yes, we ship to most countries. Orders can be placed directly on our website for most destinations – shipping costs are shown at checkout.
For remote or conflict‑affected regions (e.g., Alaska, Hawaii, Iran, Philippines, etc.), please contact us at sales@droneer.com before ordering. We’ll check feasibility and provide delivery options.
Which version of the 5" drone should I buy?
It depends on your goggles and your filming goals:
O4 PRO Edition (Digital): The ultimate cinematic beast. It delivers a crystal-clear HD feed and records 4K/120fps internally. Requires compatible digital goggles.
Analog Edition: Built for hardcore freestyle and racing. It offers the lowest latency (near zero) and is the most budget-friendly. If you’re practicing high-risk tricks where "crashing is part of the game," this is the most cost-effective choice.
PNP Version (No Receiver and VTX): For pro pilots who already have their own preferred radio system (like TBS Crossfire or ELRS 2.4G) and video transmitters. It needs the VTX (Digital or Analog) and requires you to install your own receiver.
What is the recommended battery for this 5" frame?
For the best power-to-weight ratio, we recommend: 6S 1500mAh - 4500mAh LiPo.
6S 1500mAh: If you are chasing maximum agility for racing.
6S 4500mAh+: If you are cruising or carrying a full-sized GoPro.
Does this drone support 4S batteries?
While it can fly on 4S, this motor/ESC combo is optimized for 6S. Using 4S will result in significantly less "punch" and might feel sluggish for a 5-inch freestyle rig.
Does the O4 PRO version include "GyroFlow" support?
Yes. The O4 PRO version records essential gyro data. You can put your footage through GyroFlow in post-production to get that buttery-smooth, professional cinematic look.
Can the 5" frame carry a full-sized GoPro?
Yes! Unlike the 2.5" series, this 5" frame is a workhorse. It comes with a pre-installedTPU GoPro mount.Whether you choose the O4 PRO or Analog version, the frame is rigid enough to carry a full-sized Action Camera without compromising flight stability.

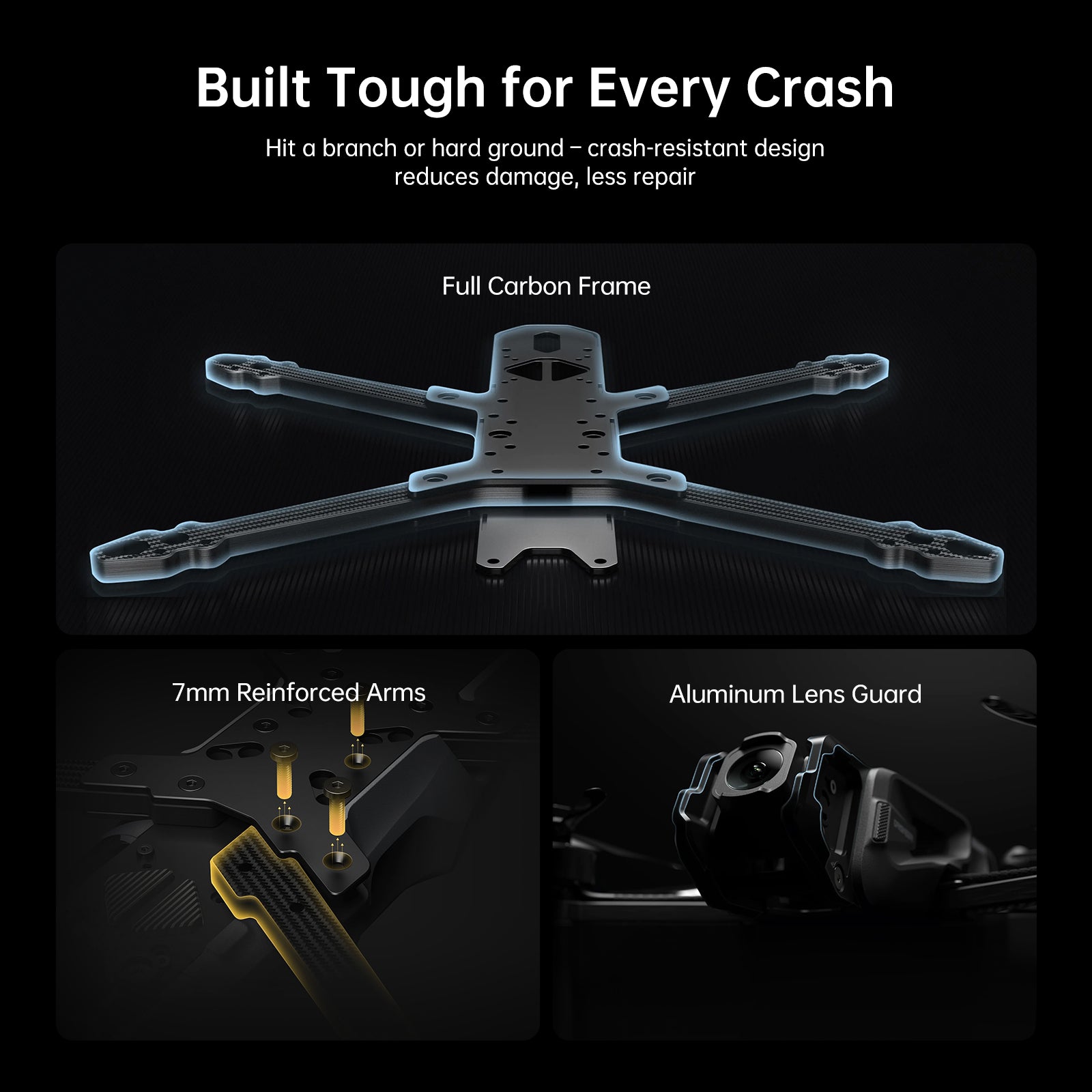

How "crash-proof" is the frame?
It’s built for impact. We used 7mm-thick high-strength carbon fiber for the arms—far beefier than the industry standard. The True-X configuration ensures a balanced flight feel, while the CNC aluminum nose and side plates act as a rugged roll cage for your electronics. Plus, the quick-release side panels make internal maintenance fast and simple. Whether you're a beginner or a pro, this frame is designed to spend more time in the air and less time on the bench.
