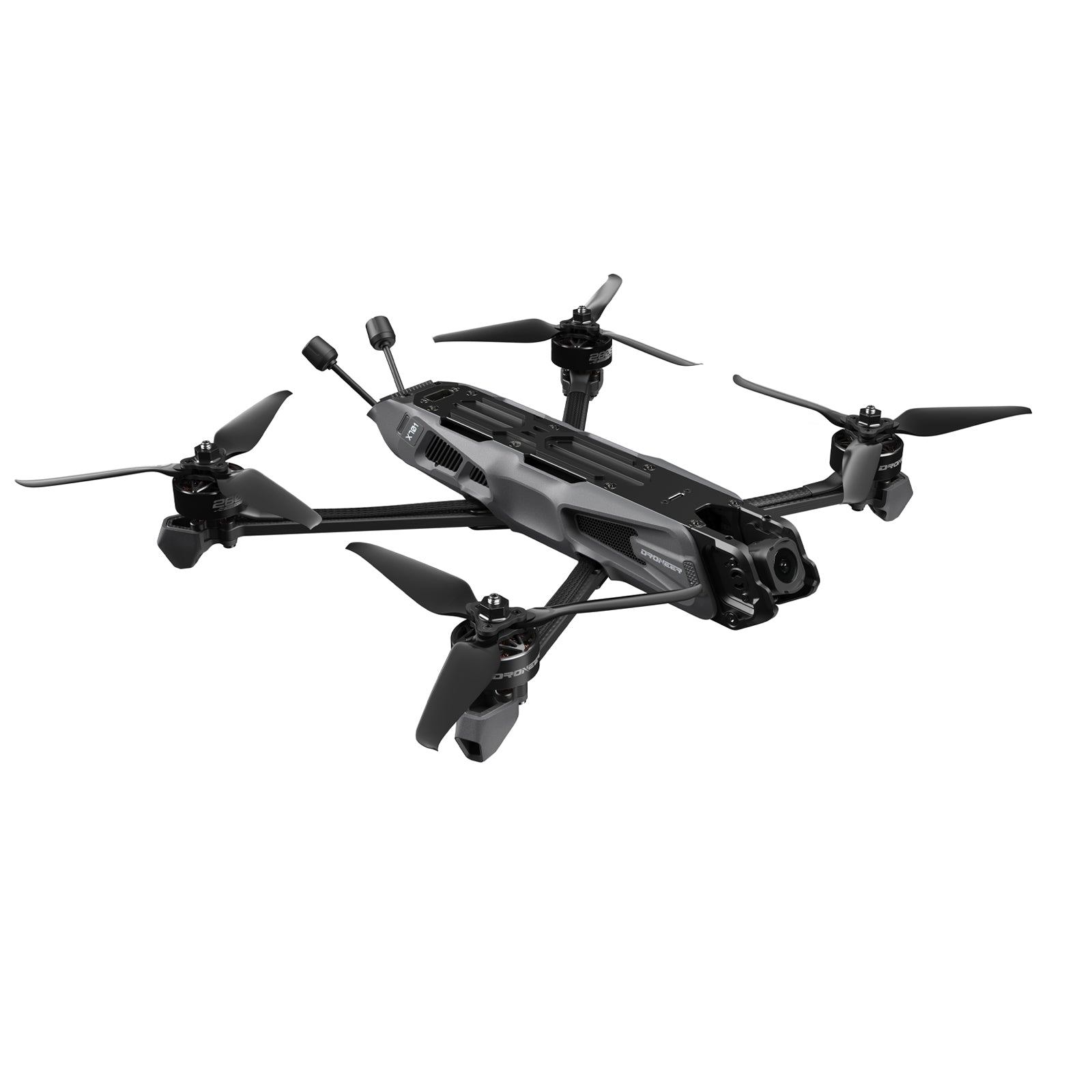

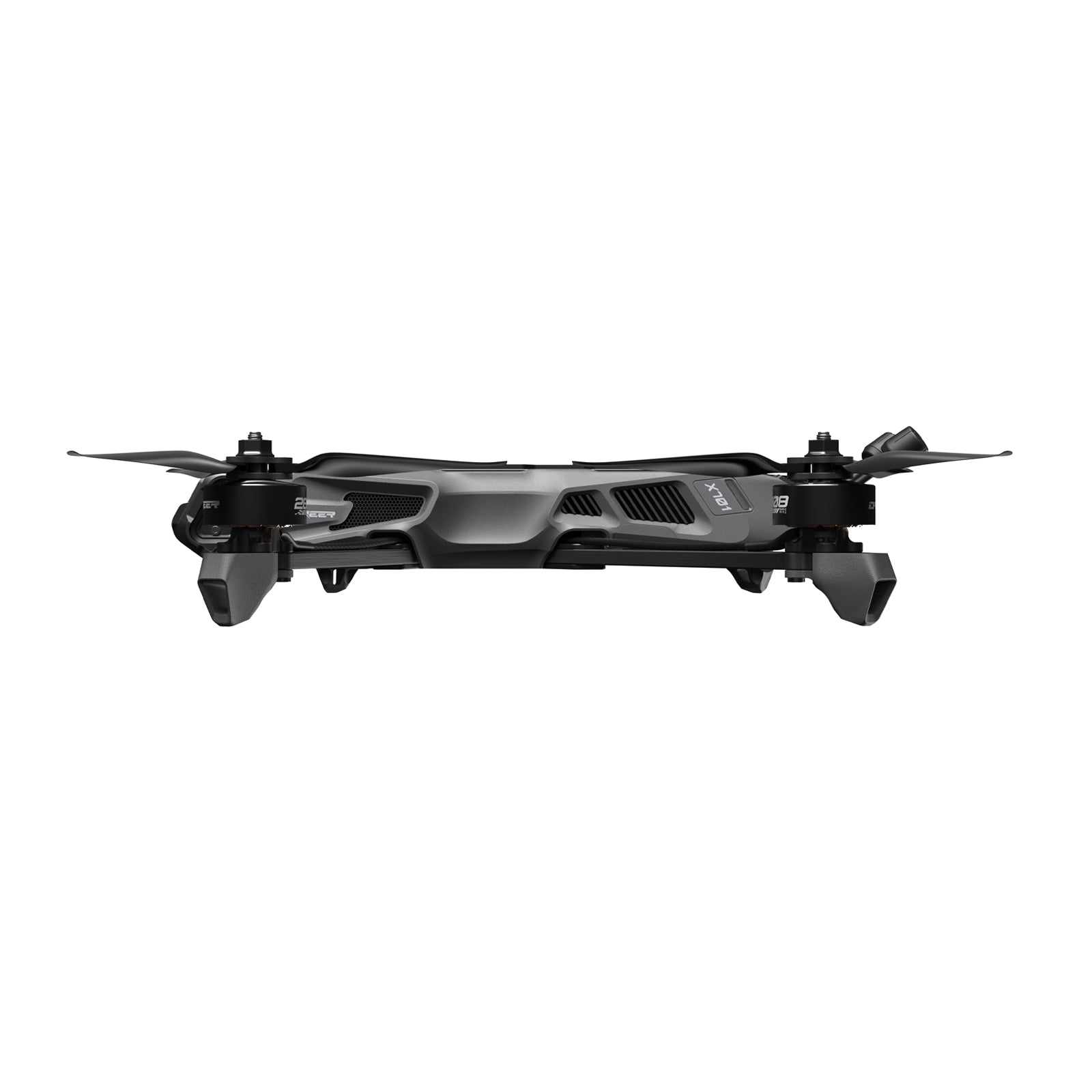

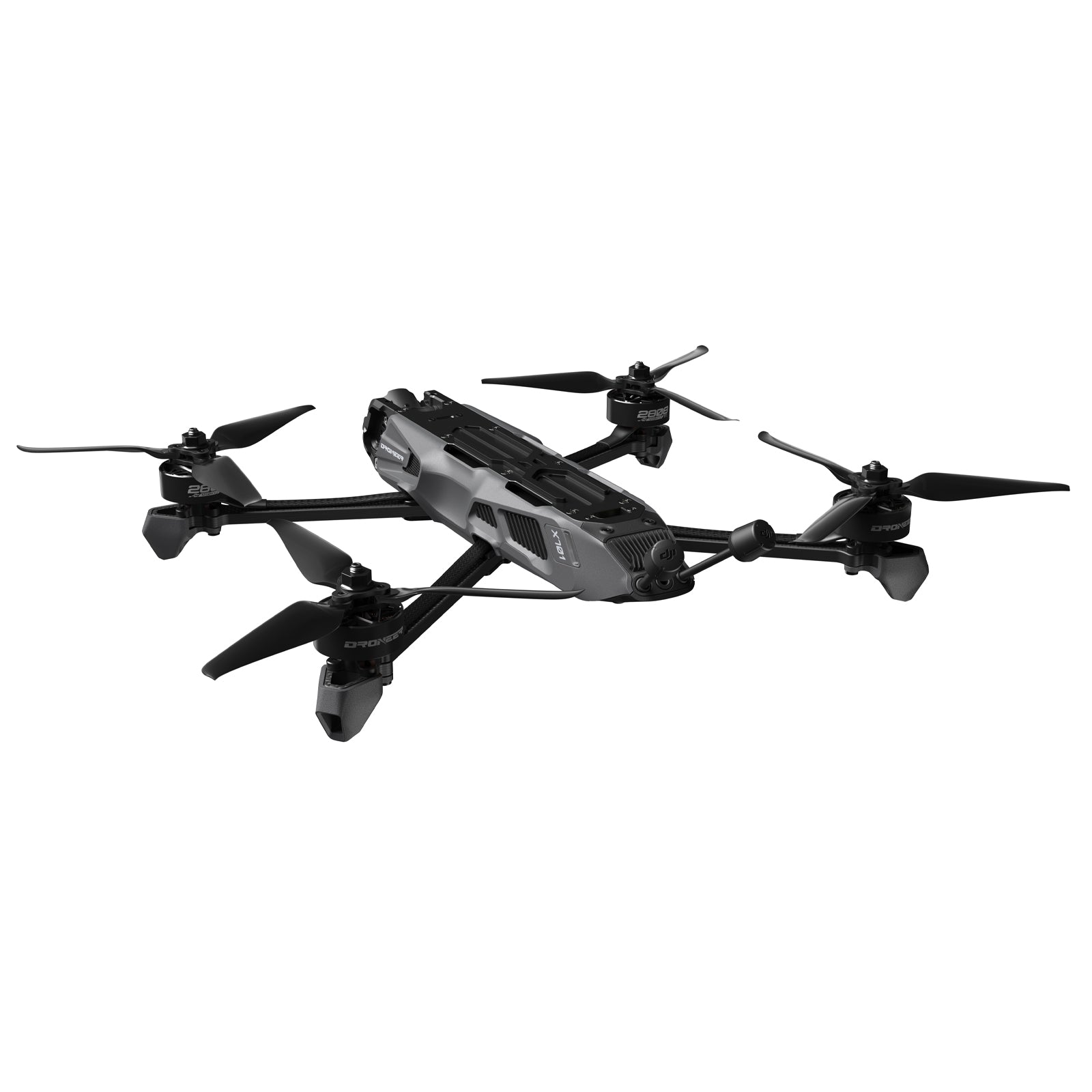

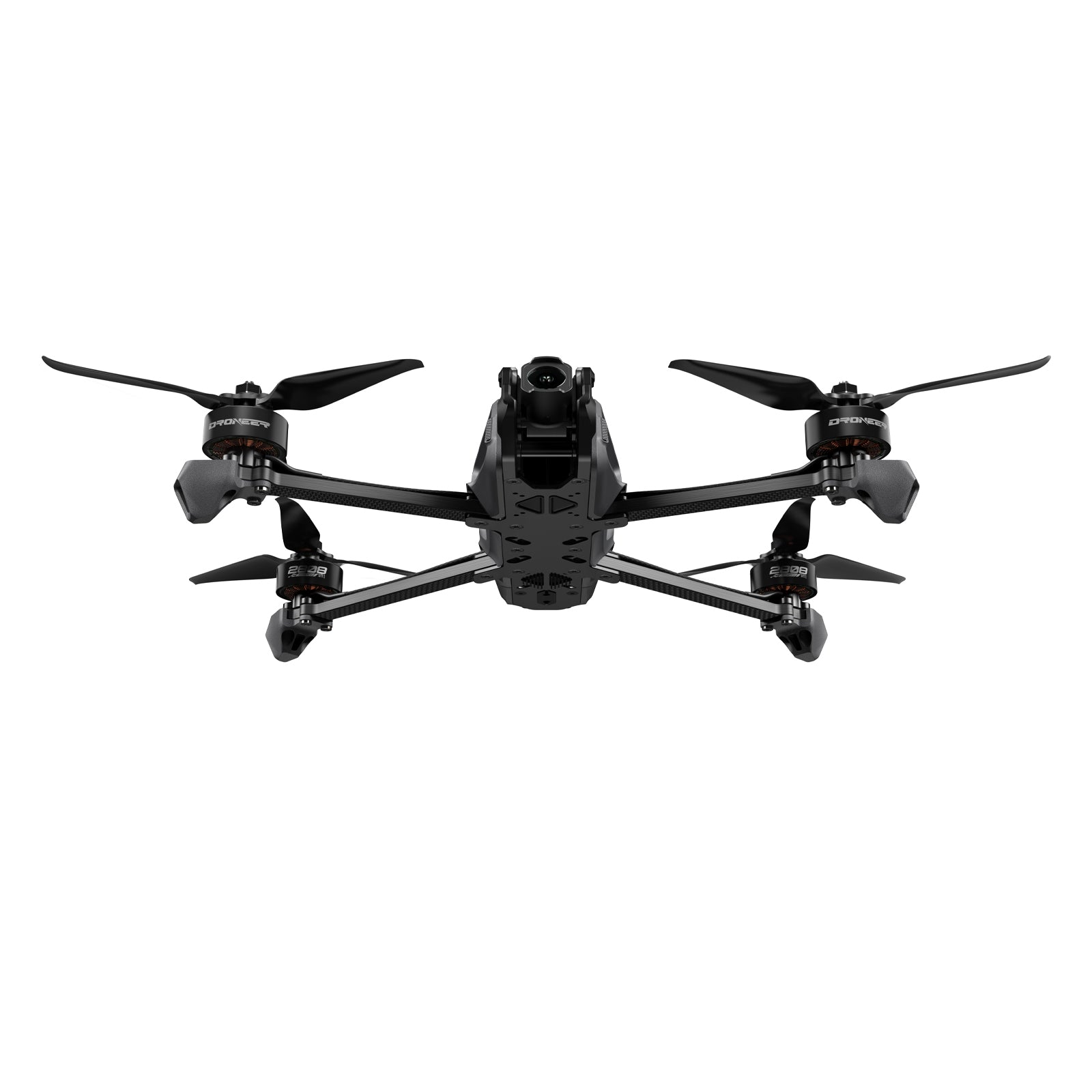

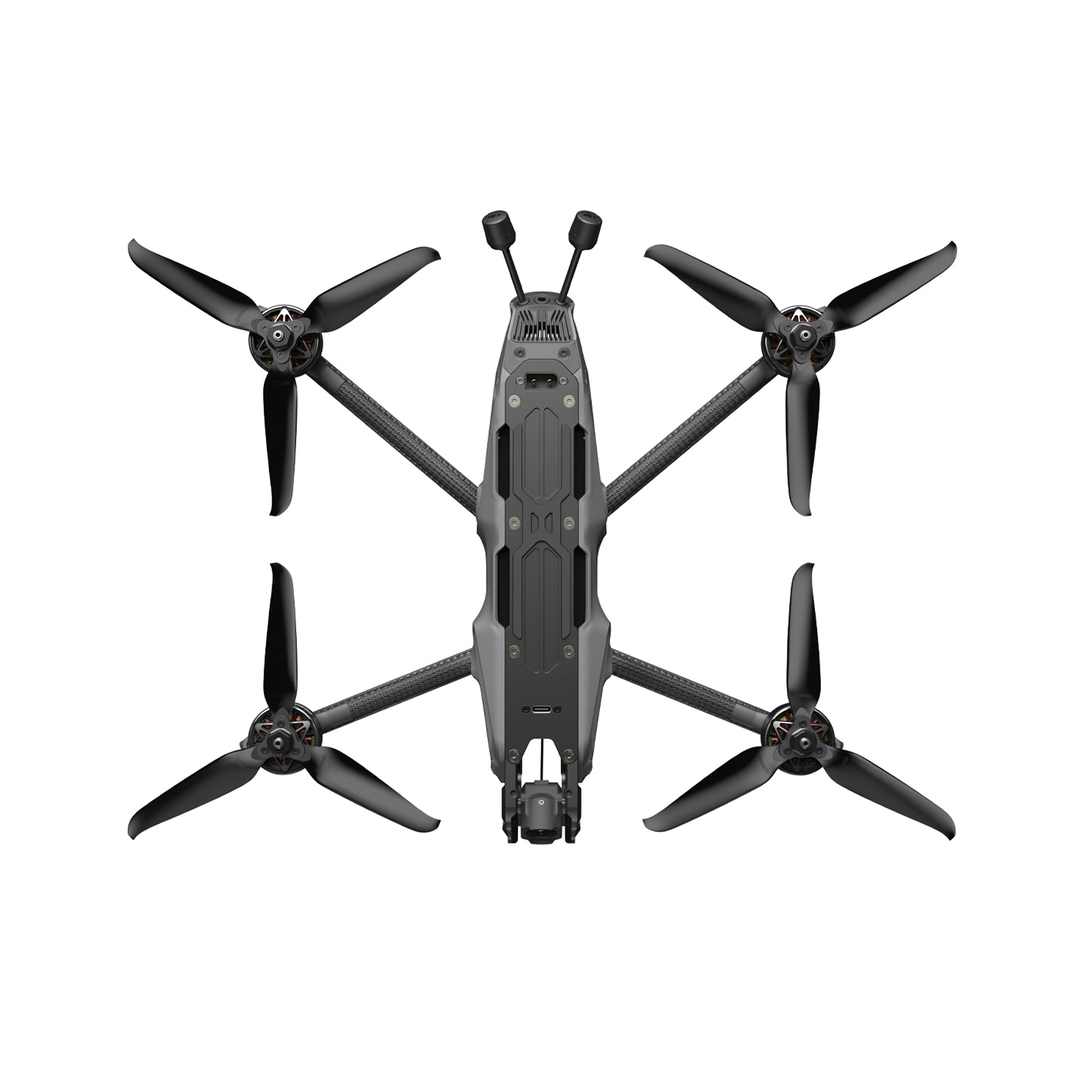

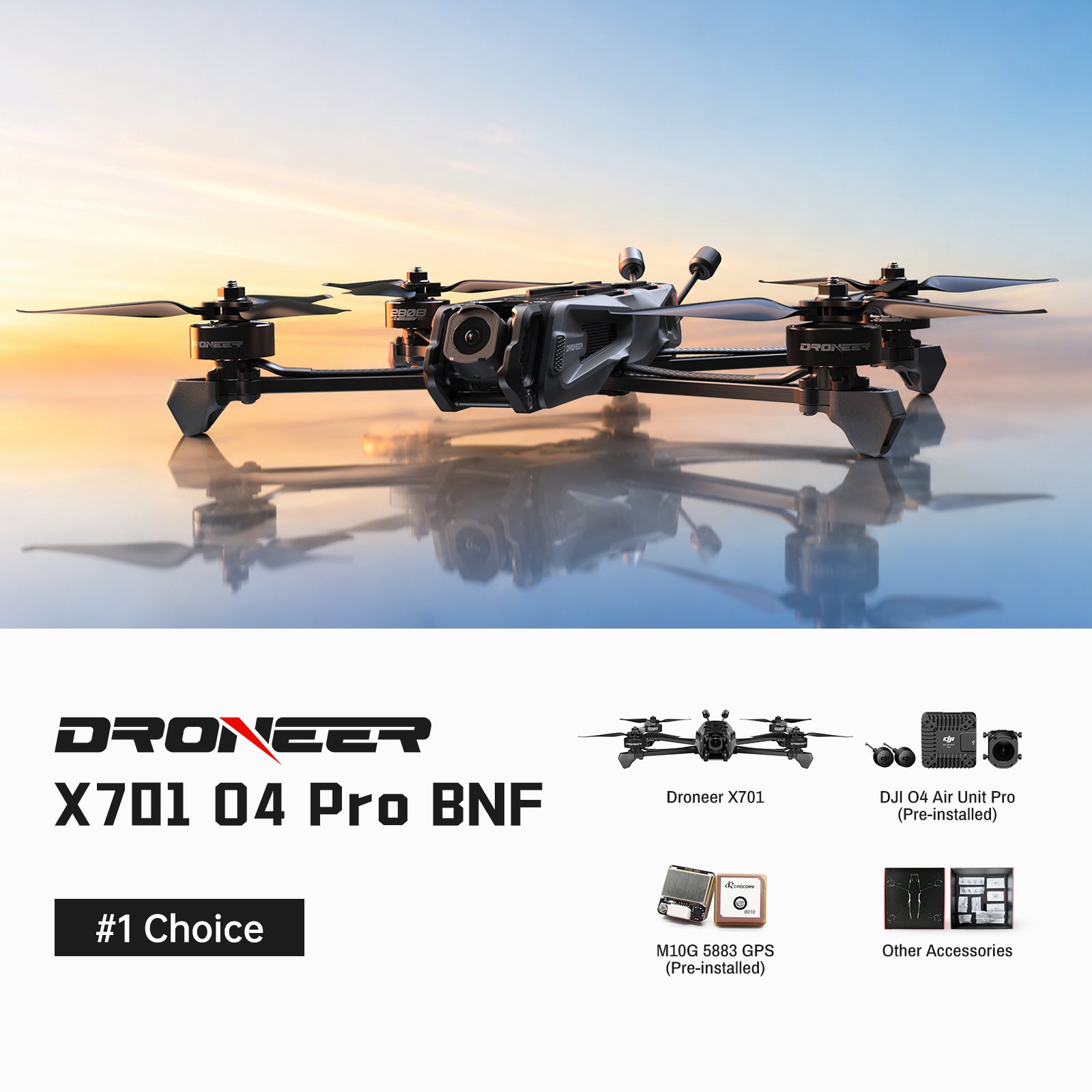

Droneer X701 FPV Drone
- H743 Flagship Flight Controller: Powered by the ultra-fast STM32 H743. With 2.2x faster processing than F722 and a Dual Redundancy System (Dual Gyros & Baros), it offers rock-solid flight stability and millisecond response.
- DJI O4 Pro VTX & 4K Camera: Equipped with the 1/1.3-inch CMOS sensor and a 155° wide-angle lens. Supporting 4K/120fps video, the DJI O4 Pro VTX delivers cinematic clarity and 15km ultra-low latency transmission.
- Powerful 2808 Motors and 28-Min Endurance:Optimized propulsion with 2808 1250KV brushless motors and a 65A BL32 ESC. The X701 achieves a 28-min flight time and a 170km/h max speed, making it the ultimate tool for cinematic long-range missions.

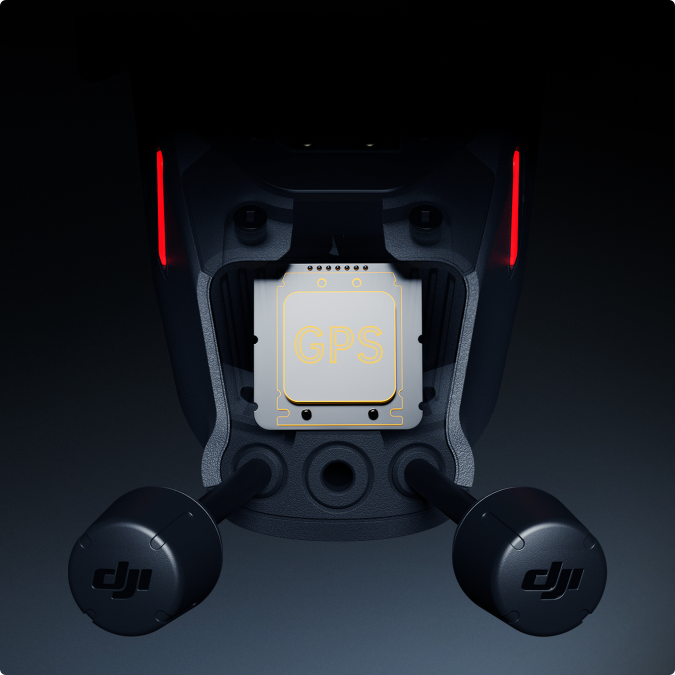

- Built-in high-precision GPS:Integrated GPS, outstanding in both layout & performance. Fast satellite acquisition & precise positioning ensure stable flights & worry-free exploration.

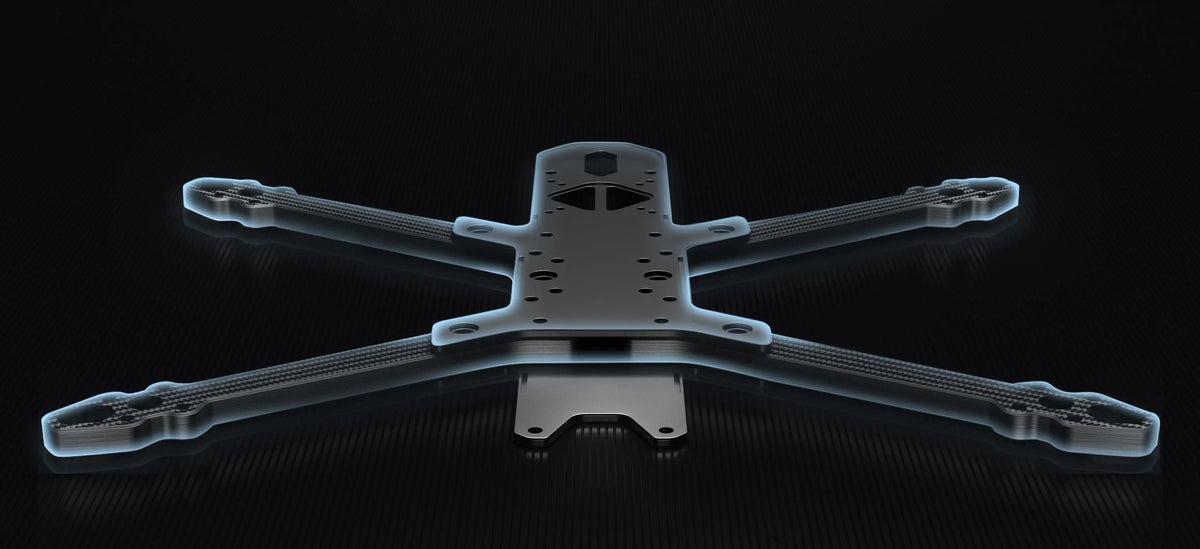

- Reinforced Frame for Maximum Protection:Built to endure with 6mm carbon fiber arms and an aluminum lens guard. The 3-screw quick-release design allows for rapid arm maintenance, keeping you in the air longer.
- Active Aero-Cooling Design:Built for persistent performance. Featuring negative-pressure side panels and bottom aluminum heat sinks, it prevents VTX overheating during long-haul flights, ensuring a stable high-bitrate signal.
WHICH VERSION IS RIGHT FOR YOU?
Key differences:
X701 O4 PRO features the cutting-edge DJI O4 digital system for stunning 4K/120fps clarity and integrated M10G 5883 GPS for secure long-distance exploration. It comes in four receiver options: O4 Pro, ELRS 2.4GHz, ELRS 915MHz, and TBS Crossfire.
X701 Analog features a high-power 1.6W 5.8G VTX and a FOXEER Micro Toothless camera for zero-latency feedback even at extreme distances. Equipped with a Maple 11cm antenna and M10G 5883 GPS, it’s built for maximum signal penetration and reliability. It comes in three receiver options: ELRS 2.4GHz, ELRS 915MHz, and TBS Crossfire.
X701 PNP is our most versatile long-range foundation, featuring the same powerful Droneer 2808 motors and H743 FC stack but stripped of the VTX, Camera, and GPS. It’s the ultimate canvas for pilots who want the freedom to install their own custom long-range hardware. It is Digital Ready and designed for maximum weight efficiency.
X701 O4 Pro
|
X701 Analog
|
X701 PNP
|
|
|---|---|---|---|
| VTX | O4 Pro | Droneer 5.8G 1.6W Analog | None |
| Camera | O4 Pro 1/1.3-inch CMOS 4K/120fps Video 155° Ultra-Wide FOV 10-bit D-Log M Color Mode |
FOXEER Micro Toothless 1/2-inch CMOS 1200TVL |
None |
| VTX Antenna | O4 Pro | Maple 11cm 5.8GHz Analog | None |
| Receiver | 4 options (O4 Pro/ ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | 3 options (ELRS 915MHz/ ELRS 2.4GHz/ TBS 915MHz) | None |
| GPS | M10G 5883 | M10G 5883 | None |
Droneer X701 FPV Drone
TAKE A CLOSER LOOK
4K HD Video Output
15km VTX Range

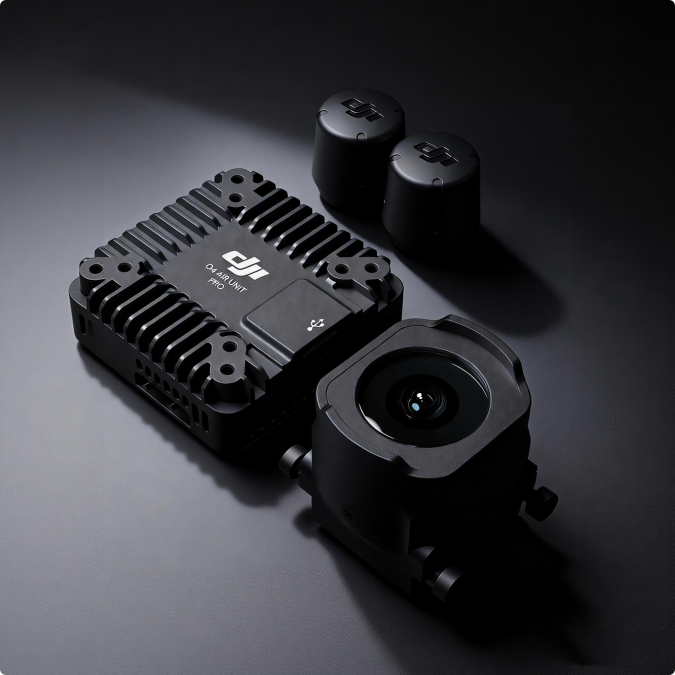

Flagship O4 Pro VTX
Built-in High-Precision GPS

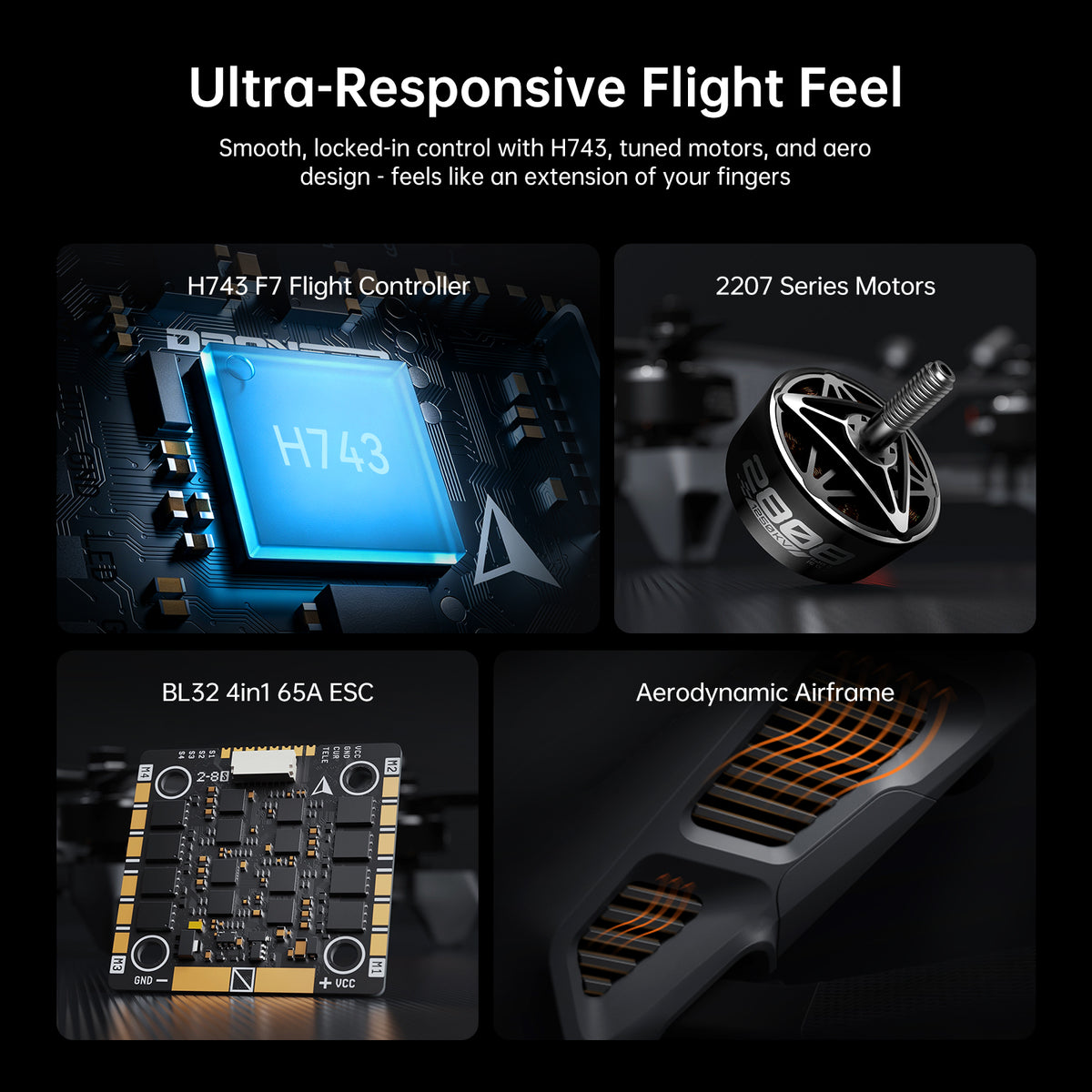

High-performance FC
Pioneer - Redefine Industrial Design

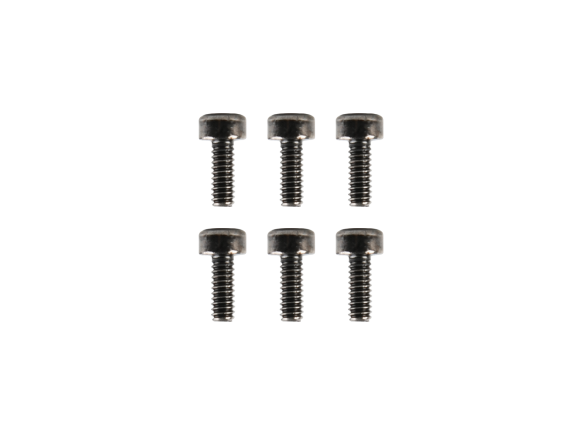

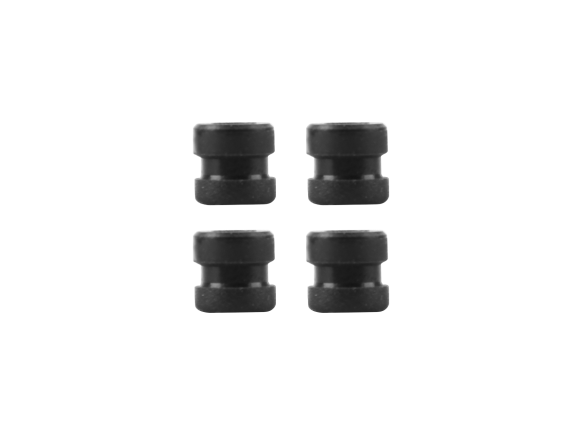

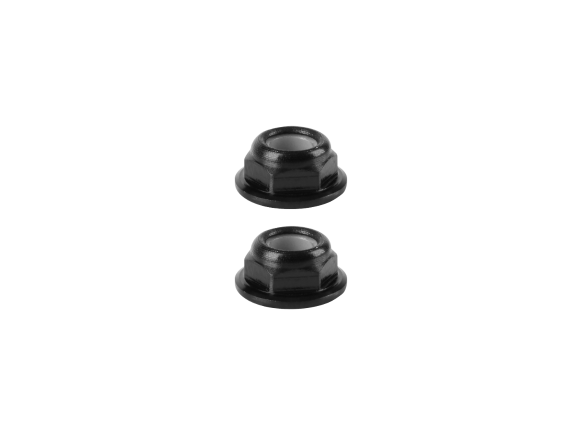

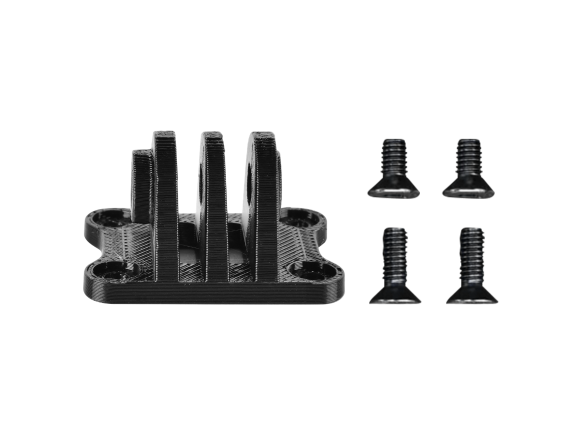

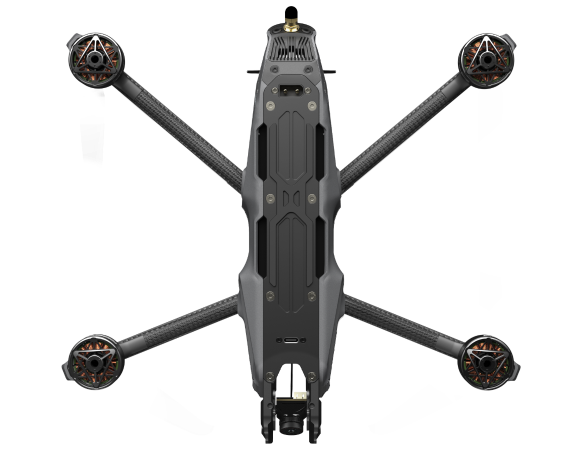

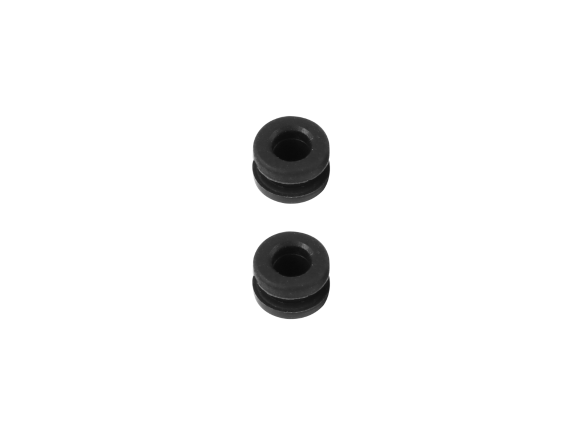

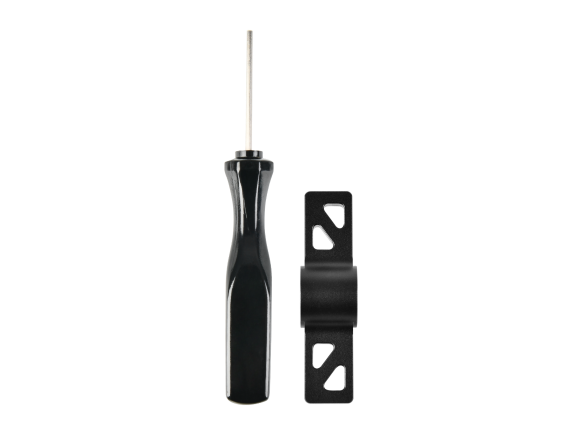

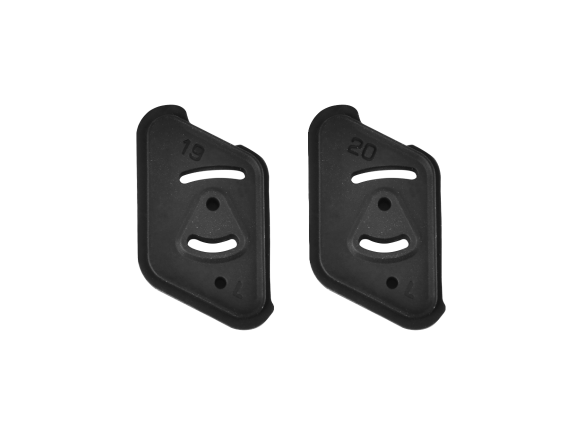

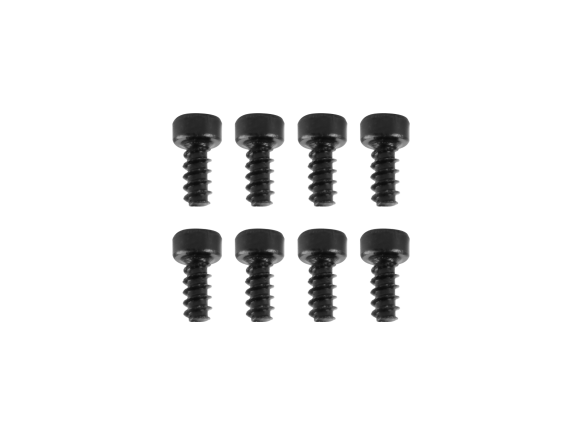

IN THE BOX
SPECS
Aircraft
| FC | Droneer H743 FC |
| MCU | STM32H743 |
| Barometer | MS5611 + SPA06-003 |
| Gyro | ICM42688P*2 |
| OSD | AT7456E |
| Blackbox | 32Mb |
| ESC | Droneer 65A 4-in- 1 Brushless ESC (2–8S) |
| Motor | Droneer 2808 1250KV |

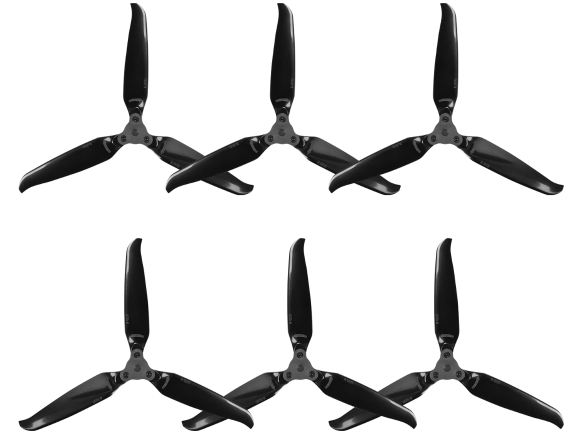

| Propeller | GF 7036 Foldable |
| GPS | M10G 5883 (PNP Not Include) |
| GNSS | GPS, Galileo, BeiDou, GLONASS |
| Battery Connector | XT60 |
| Receiver Options | ELRS/TBS/O4 Pro |
| Dimensions | 300*285*104mm |
| Weight | 656g |
| Max Takeoff Weight | 4.5KG |
| Wheelbase | 313mm |
| Top plate thickness | 2mm |
| Middle plate thickness | 2mm |
| Bottom plate thickness | 2mm |
| Arm thickness | 6mm |
| Max Takeoff Altitude | 6000m |
| Max Speed | 170 km/h |
| Max Flight Time | 28 min |
Video Transmission (O4 Pro Ver.)
| Video Transmission System | DJI O4 Air Unit Pro |
| Image Sensor | 1/1.3-inch CMOS Sensor |
| Lens | FOV: 155° |
| Video Format | MP4 |
| Max Video Bitrate | 130 Mbps |
| Video Resolution | Up to 4K @ 120 fps |
| Color Mode | Normal Mode/D-Log M |
| Live View Quality | 1080P@30/48/50/60/100fps |
| Max Video Transmission Range | 15 km (FCC), 8 km (CE), 8 km (SRRC) |
| Antenna | 2 antennas, 2T2R |
| Stabilization | RockSteady 3.0+/Off (Gyroflow supported) |
| Operating Frequency | 5.170-5.250 GHz & 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 5.1GHz＜23dBm(CE)/ 5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC) |
| Built-in Storage | 4GB |
| Supported SD Cards | microSD (up to 512 GB) |
Video Transmission (Analog Ver.)
| Video Transmission System | Droneer 5.8G 1.6W VTX |
| VTX Antenna | Single Antenna, 11cm, 5.8GHz Maple |
| Image Sensor | Sony 1/2" CMOS |
| Resolution | 1200TVL |
| Aspect Ratio | Switchable 4:3 / 16:9 |
| Lens | FOV: 4:3 WIDE FOV-H: 145° FOV-D:180° 4:3 NARROW FOV-H: 125° FOV-D:160° 16:9 FOV-H: 145° FOV-D:165° |
| Shutter Speed | PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec |
| Video Output | CVBS Analog Signal |
| Minimum Illumination | 0.0001Lux |
| DNR | 3DNR |
| WDR | 100dB |
| DAY/NIGHT | EXT/Auto/Color/B&W |
| Flight OSD | Voltage/Cam Title/Time |
| Dimension | 19*19mm |
FAQ
Why choose the 7-inch model over a 5-inch drone?
The 7-inch frame is a dedicated Long-Range explorer. It offers superior stability in high winds and significantly longer flight times. Whether you are "mountain surfing" or chasing long-distance cinematic shots, the 7-inch provides the efficiency and "floaty" feel that smaller drones lack.
Which version is best for Long Range?
O4 PRO Edition: The gold standard for modern long-range. It provides a crisp HD feed so you can see every detail of the terrain 15km away.
Analog Edition: Preferred by "hardcore" long-range pilots who want the absolute lowest latency and a signal that "degrades gracefully" rather than cutting out instantly. It’s also the lightest and most budget-friendly.
PNP Version: Best for pilots who have a specific long-range receiver preference (like TBS Crossfire 915MHz or ELRS 915MHz/2.4G) and want to install it themselves for maximum signal penetration.
Does it have "GPS Rescue" pre-configured?
Yes! The X701 comes with the GPS Rescue mode fully pre-configured as a standard safety feature.
LiPo or Li-ion? Which battery should I use?
For Maximum Range: Use a 6S 4000mAh - 5000mAh Li-ion pack (like VTC6 or 21700 cells). This can push your flight time to 15-25 minutes of steady cruising.
For Freestyle/Power: Use a 6S 1300mAh - 2200mAh LiPo (High C-rating). Best for aggressive mountain diving.
What is the maximum payload?
This 7-inch beast can easily carry a full-sized GoPro Hero 13 plus a large Li-ion battery. The high-torque motors are designed to handle the extra weight without overheating the ESCs.
Is the frame stiff enough for 7-inch props?
Absolutely. To prevent "Mid-range oscillations" common in larger drones, we use 6mm carbon fiber arms and a reinforced mid-section. This ensures a "locked-in" feel even when fighting high-altitude winds.
What spare parts should I carry for a trip?
For long-range missions, we highly recommend carrying:
- Extra sets of 7-inch propellers (balanced for efficiency).
- A spare GPS antenna.
- A set of replacement arms.
We use high-gain M10 GPS modules for faster satellite acquisition.
Better visibility means you can spot power lines and branches from much further away.
