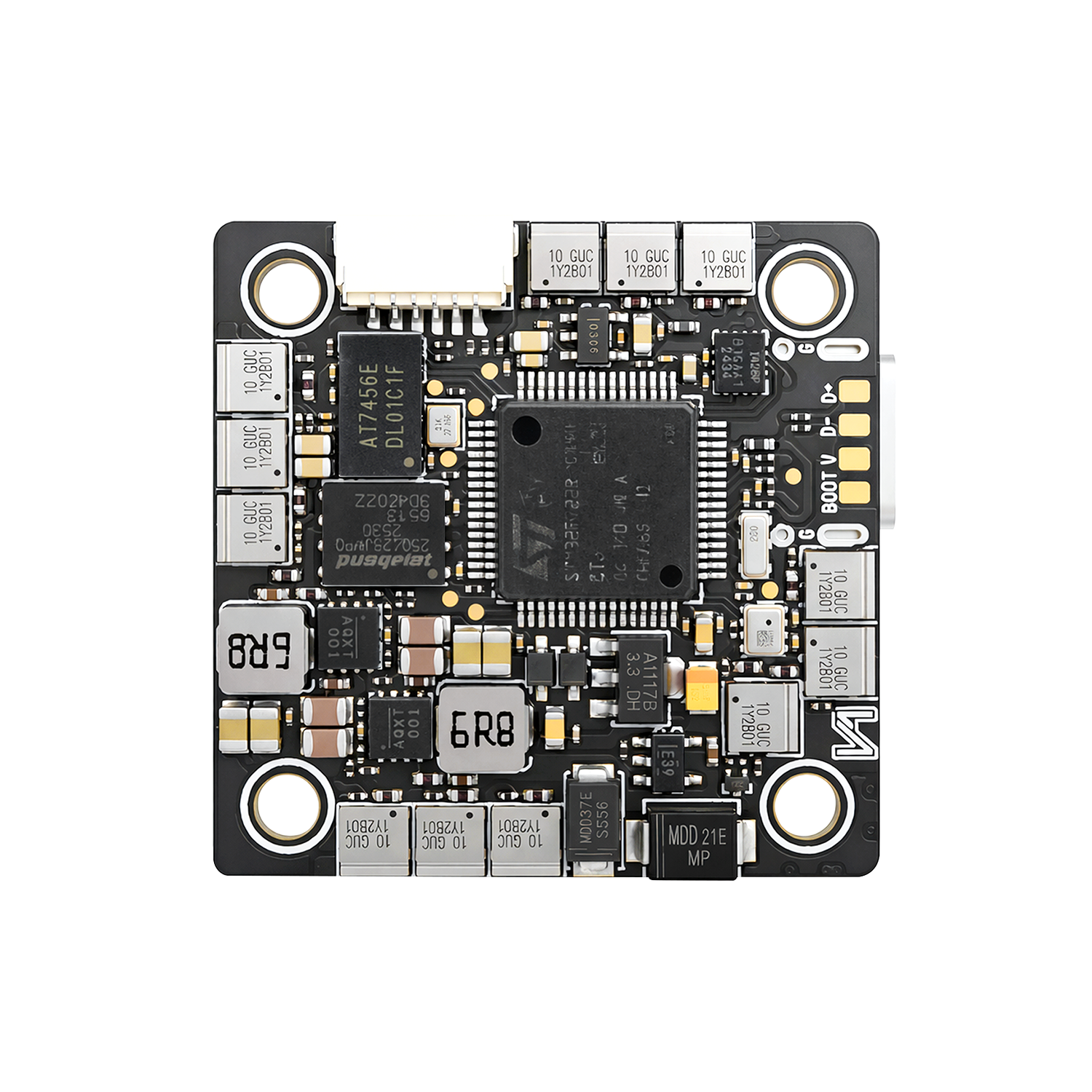

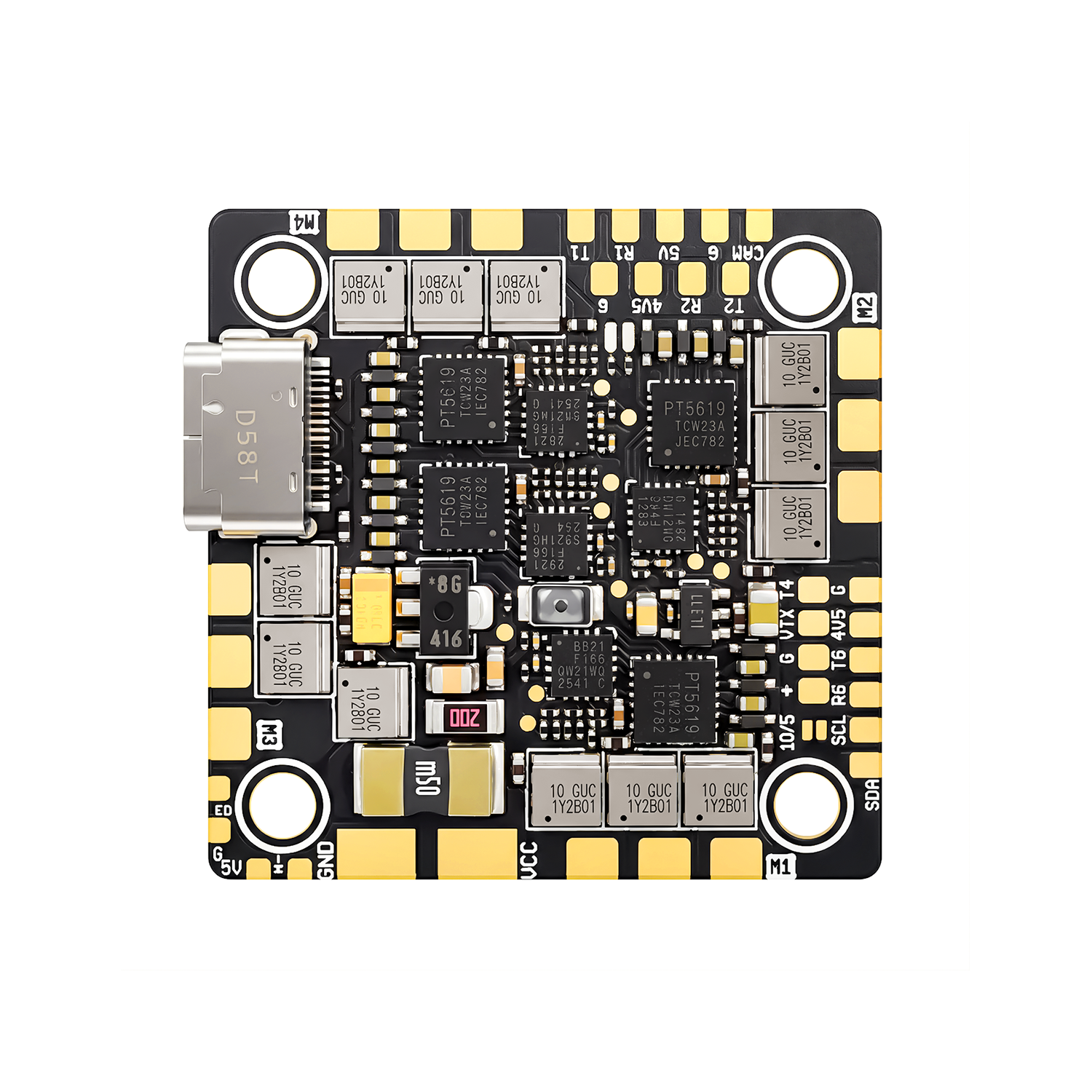

Droneer F722 AIO

Key Specifications

• MCU: STM32F722
• IMU: ICM42688P
• Bluetooth Tuning: Not supported
• Dual Camera Switching: Not supported
• Input Voltage: 2S – 6S LiPo/LiHV
• Number of UARTs: 5
• BEC Output: 10V @ 2A and 5V @ 3A (10V user‑controllable)
• Mounting Pattern: 25.5 × 25.5 mm

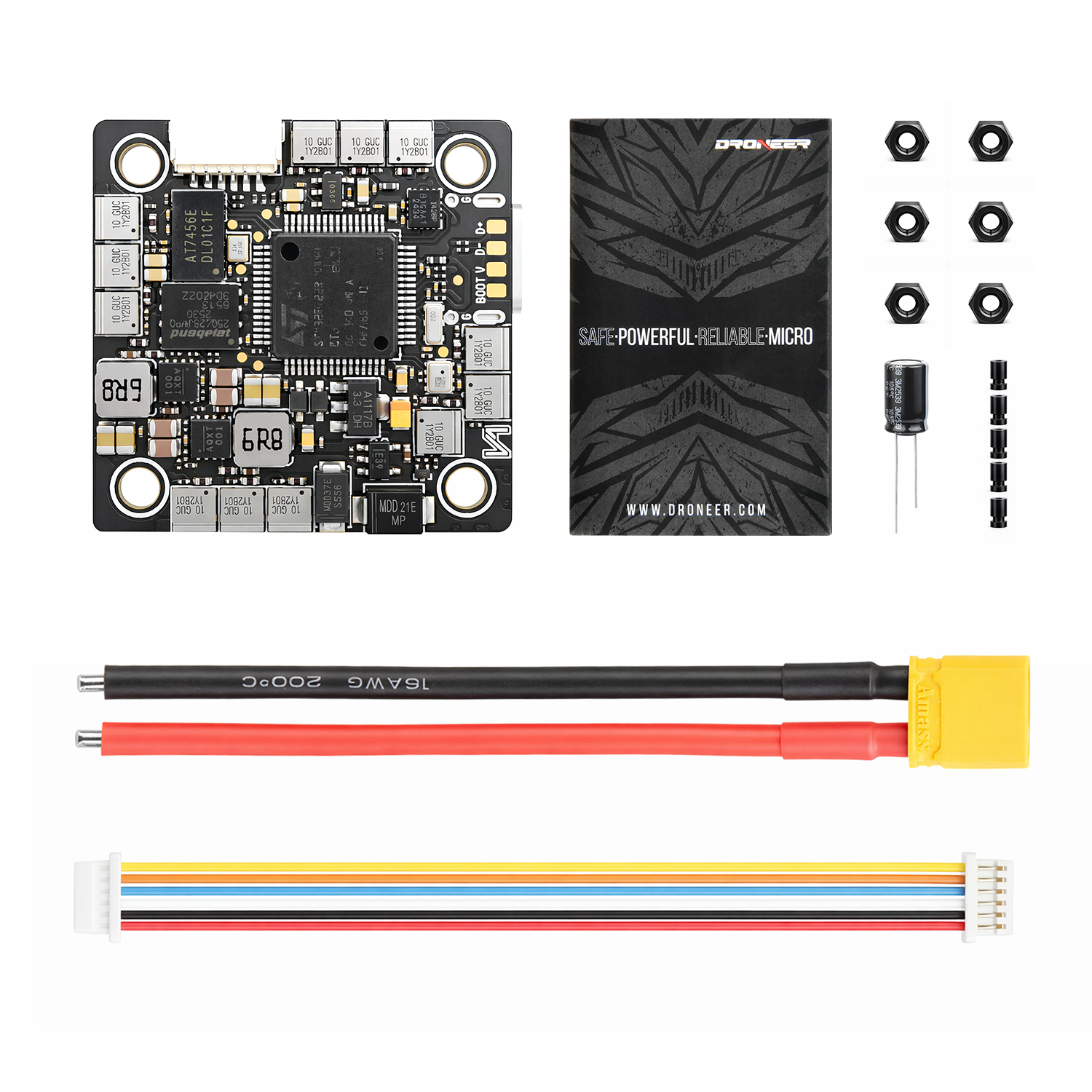

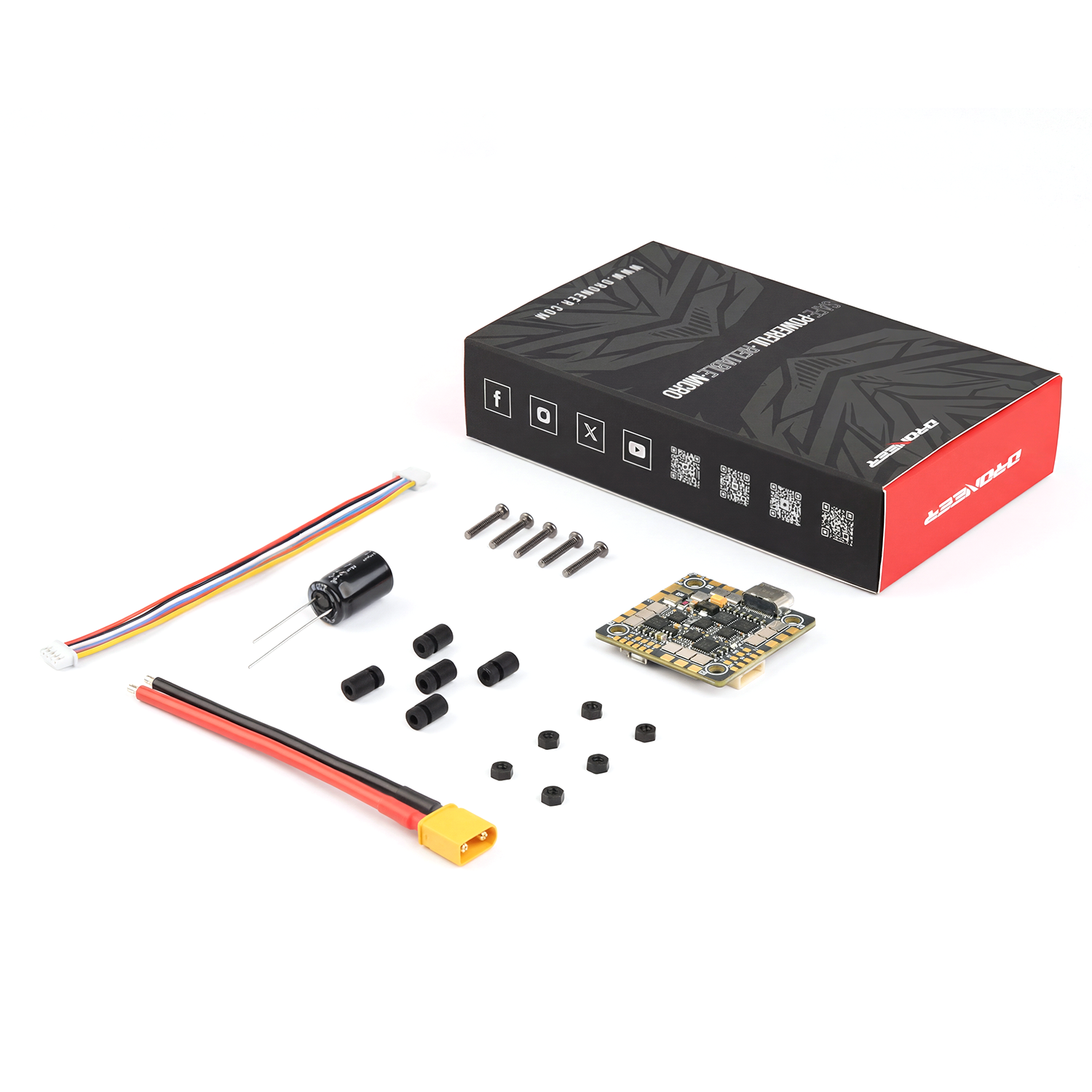

What's Included

• AIO_F722_BlueJay40A_V1 Flight Controller x1
• M2 Black Nylon Locknuts x5
• M2 Silicone Vibration Damping Balls x5
• SH1.0 DJI VTX 6-Pin Dedicated Ribbon Cable x1
• M2 Black Flat Head Nickel Plated Screws x5
• Amass XT30 16AWG Silicone Power Cable x1
• Ruby Electrolytic Capacitor x1
