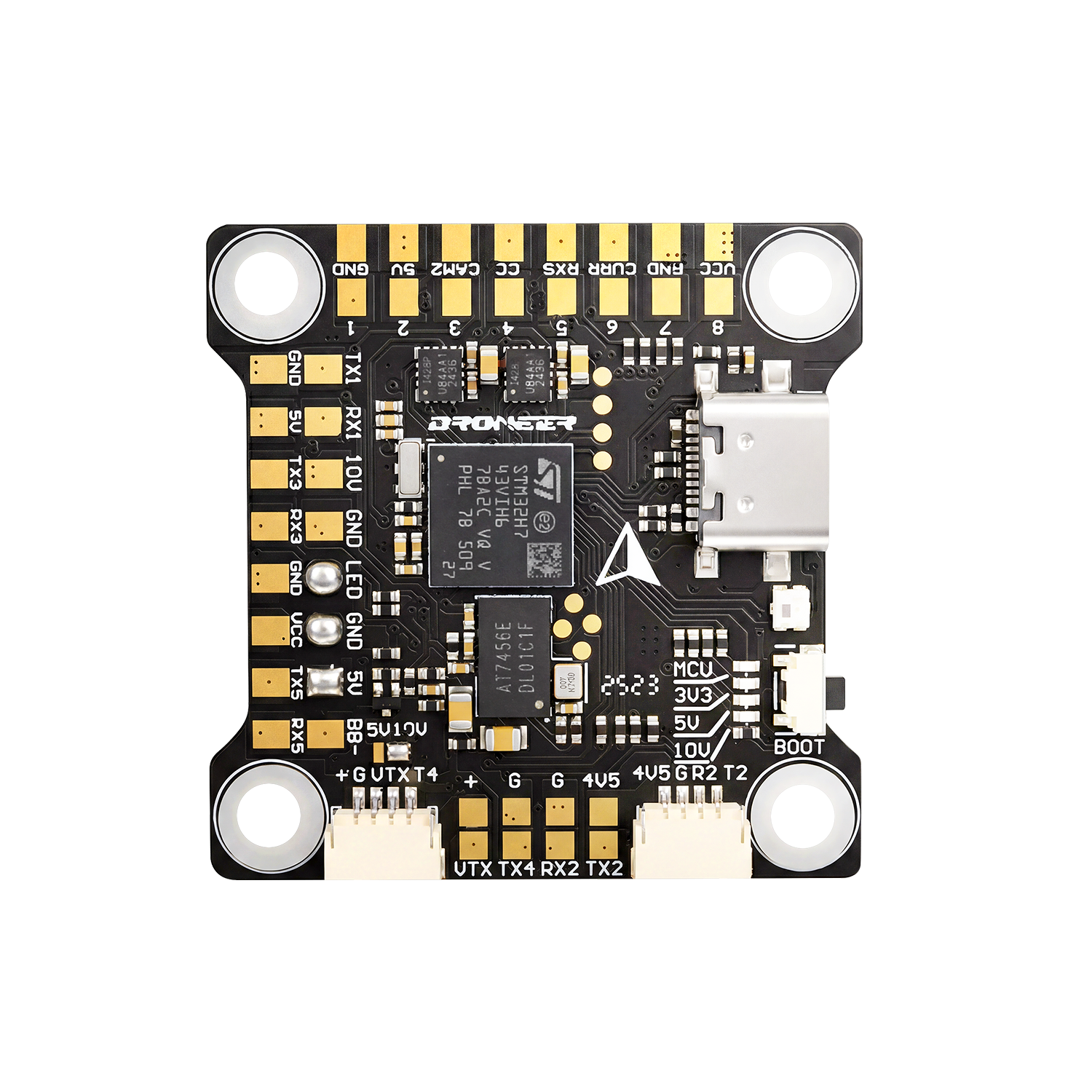

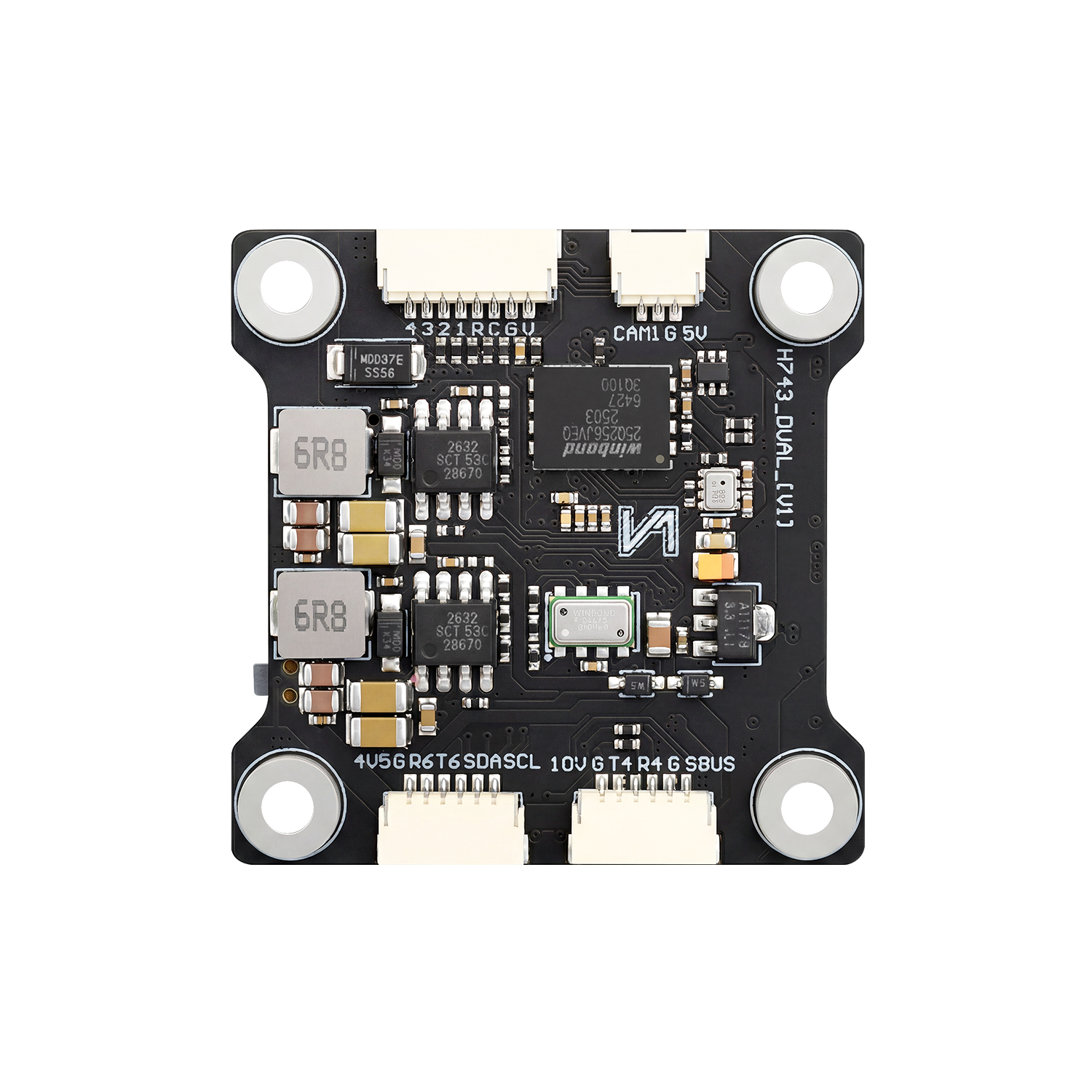

Droneer H743 Flight Controller

Key Specifications

• MCU: STM32H743VIT6
• IMU: Dual ICM42688P (redundant gyroscopes)
• Bluetooth Tuning: Not supported
• Camera Switching: CVBS (analog, switchable)
• Input Voltage: 2S – 8S LiPo/LiHV
• 5V Output: Yes (for FC / peripherals)
• UART Ports: 6
• BEC Output: 10V @ 3A and 5V @ 3A (10V user‑controllable)
• Mounting Pattern: 30.5 × 30.5 mm

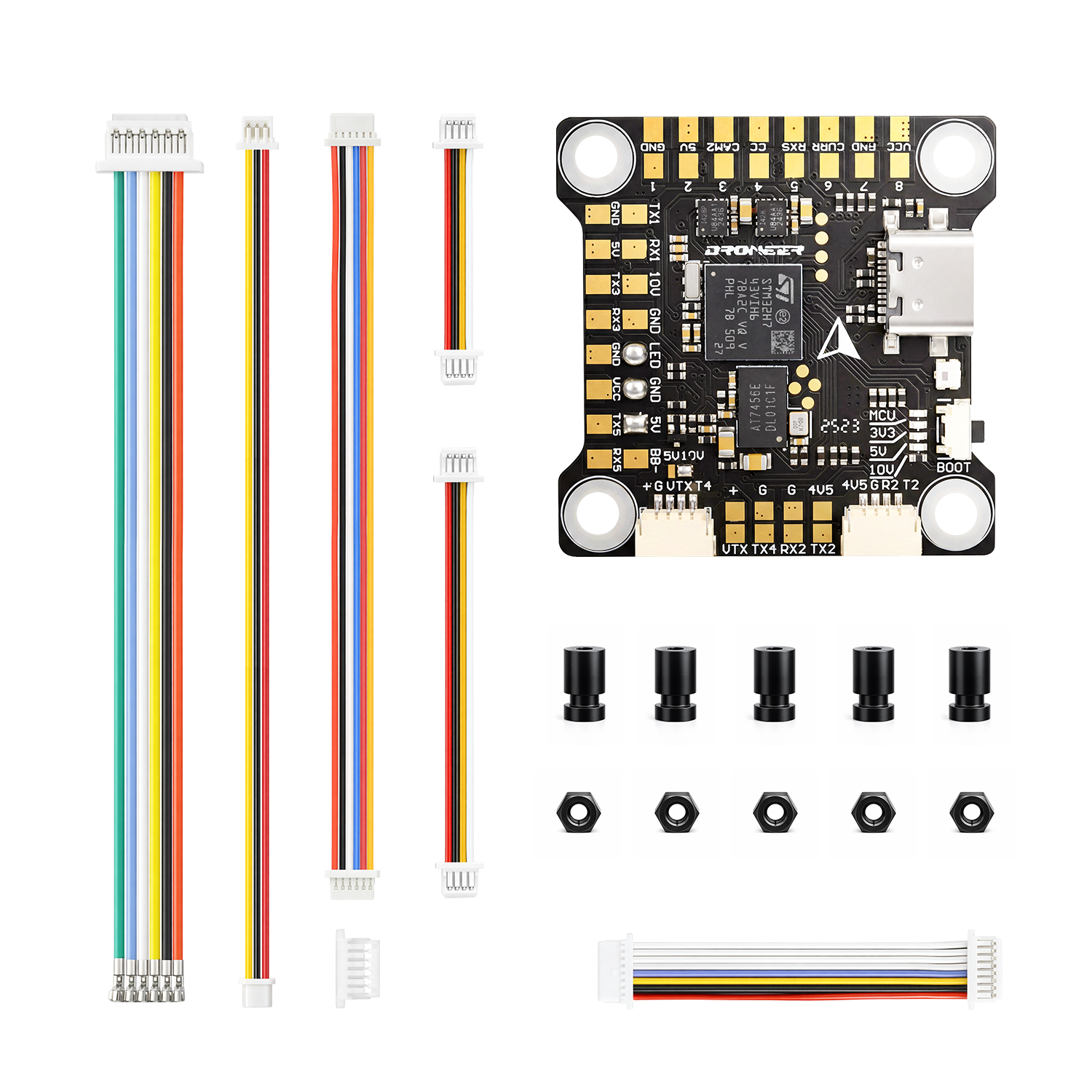

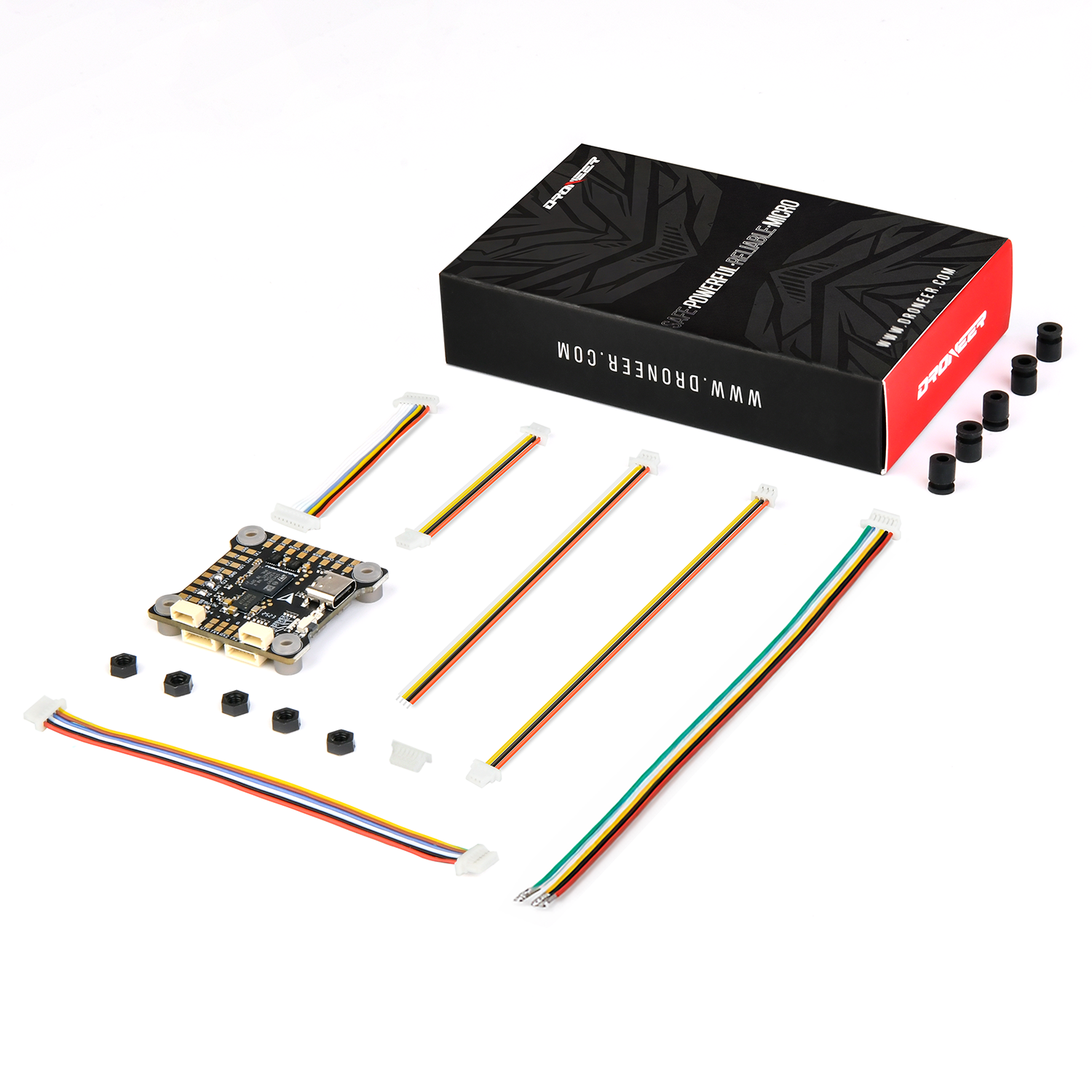

What's Included

• Droneer H743 Flight Controller x 1.
• FC ESC SH1.0 8P Cable x 1.
• Black Soft Silicone Grommets x 5.
• DJI HD VTX Cable x 1.
• Analog VTX 4-Pin Ribbon Cable x 1.
• GPS Connection Ribbon Cable x 1.
• Receiver Single-End Ribbon Cable x 1.
• SH1.0 6P Housing Connector x 1.
• M3 Black Nylon Locknuts x 5.
