Is the O4 Pro Digital System Worth the Extra $200?

In the previous article, we introduced the meanings, differences, and selection criteria of PNP, Analog, and O4 Pro FPV drones. Taking the Droneer FPV drone as an example, the O4 Pro version costs $200 more than the Analog version—a significant amount for most people.

The O4 Pro version is often more expensive than the other two versions, but is it really worth theprice, and what makes it so special? Let's take a look!

What is the O4 Pro Digital System?

The O4 Pro digital system is DJI's latest generation FPV digital video transmission system, primarily comprising key components such as the camera module, video transmission module, and antenna. The O4 Pro digital system supports 1080P real-time video transmission, an ultra-low transmission latency of 15 milliseconds, and a maximum transmission distance of 15 kilometers.

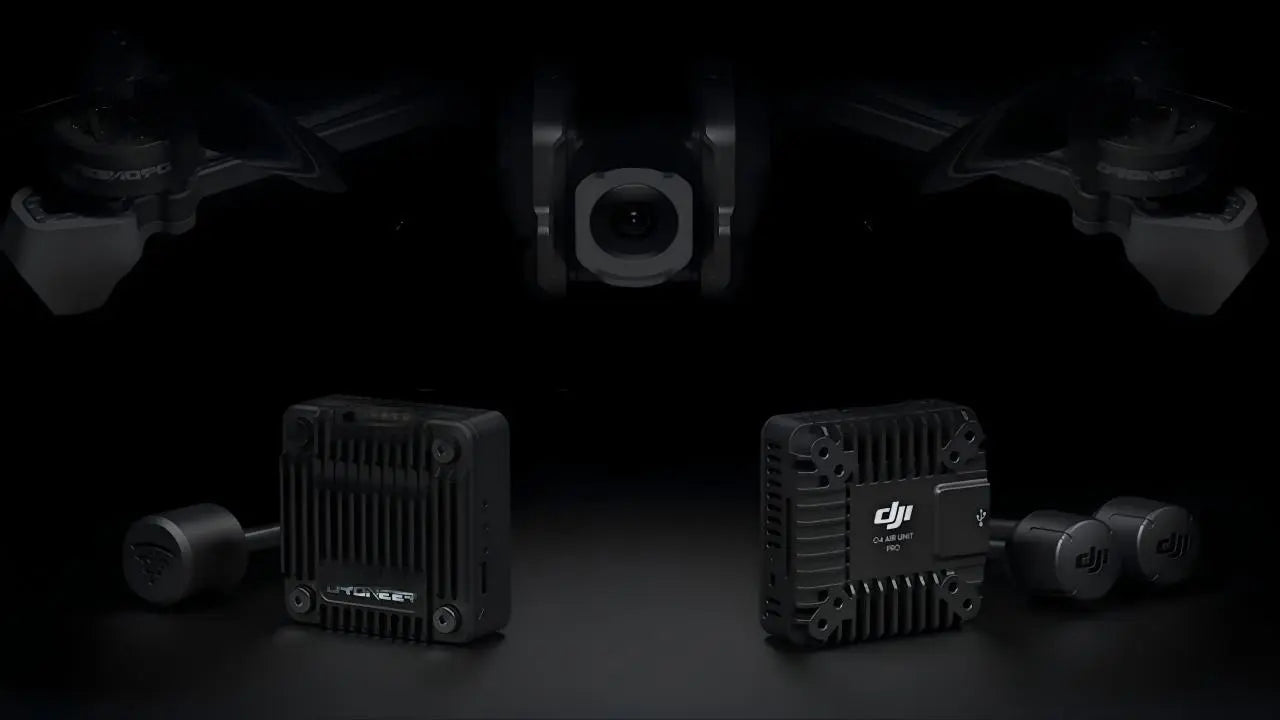

DJI O4 Pro Digital System

Digital vs. Analog: Is the Performance Gap Real?

When analog systems still hold their ground (and are often cheaper), does spending an extra $200 to upgrade to the O4 Pro truly deliver a game-changing experience? For years, users have been caught in a constant tug-of-war between “image quality” and “latency” when choosing a system. The arrival of the O4 Pro actually aims to put an end to this years-long stalemate.

Below we provide a detailed comparison of the O4 Pro Digital System and Analog FPV System across several key aspects.

Image Quality

Image quality is the biggest difference between the O4 Pro digital system and the analog system. It's well-known that digital video transmission offers significantly better image quality than analog transmission. But what specific differences exist within the latest DJI O4 Pro digital system?

O4 Pro Digital System

• Supports 1080p HD real-time image transmission
• Higher video bitrate and sharper detail rendering
• More stable footage without the “snow” interference common in analog transmission
• Supports 4K HD video recording

High-definition image quality is crucial for aerial photography, content creation, and cinematic FPV applications, as these scenarios demand exceptional visual performance. Pilots flying FPV drones equipped with the O4 Pro digital system gain clear visibility of environmental details, enhancing flight safety and improving capture quality.

Analog FPV System

• High-definition footage cannot usually be recorded directly.
• The video resolution is around 480P.
• The image is grainy and unclear.
• Interference or snow is likely to occur during long-distance flights.

Overall, if you're looking for a clearer FPV viewing experience, digital video transmission systems are significantly better than analog systems.

O4 Pro Digital System Delivers Higher Image Quality

Video Transmission Range and Signal Stability

Video transmission range and interference resistance are also crucial factors when selecting an FPV drone. Choose the most suitable option based on your specific scenario requirements, and consider whether an upgrade to the O4 Pro digital system is necessary.

O4 Pro Digtal System

• Under ideal conditions, the video transmission distance can reach approximately 15 kilometers.
• Digital signals deliver exceptionally clear images in stable areas.
• Enhanced automatic anti-interference capability.

Digital video transmission typically maintains consistently clear and stable images when signal quality is good.

Analog FPV System

• Theoretically, video transmission distances can be quite long.
• However, as the distance increases, the image will gradually show: snow, stripes, or signal noise.

The signal transmission of an analog system is bare and uncompressed, which means it is highly susceptible to electromagnetic interference.

O4 Pro Digital System Max Transimission Range

Latency

Latency is a critical metric in FPV flight, especially for FPV racing.

O4 Pro Digtal System

• Minimum latency is approximately 15ms
• Maintains relatively smooth footage even during high-speed flight
• Digital signal processing introduces a slight latency

Analog FPV System

• Latency is typically between 5–20ms
• Signal transmission is almost real-time
• More direct response for racing pilots

Therefore, in extreme racing scenarios, some professional pilots still prefer to use analog systems. However, for most recreational flights or aerial photography, the O4 Pro's latency is already very low, and the difference in actual experience is not significant.

O4 Pro vs. O4 vs. Analog: The Ultimate Comparison

Numbers don't lie. To give you the most accurate picture, we’ve synthesized official specs from DJI and Droneer (specifically the Droneer X701). This in-depth comparison reflects both manufacturer data and our own rigorous field testing.

Feature	Analog System	DJI O4 Digital System	DJI O4 Pro Digital System
MSRP (Price)	$	$$	$$$
Image Sensor	N/A	1/2-inch CMOS	1/1.3-inch CMOS
Max Recording	SD (Analog DVR)	4K @ 60fps	4K @ 120fps
Max Bitrate	N/A	100 Mbps	130 Mbps (D-Log M)
Latency (Racing Mode)	< 10ms	~20ms	~15ms (Ultra-Low)
Max Range (FCC)	1km - 3km	10km	15km (High-Gain Antennas)
Weight (Total)	~10g - 20g	~8.2g (Ultra-Light)	~32g (Standard Build)
Antenna Setup	Single Antenna	Single Antenna	Dual Antennas (2T2R)
Voltage Input	1S - 4S (Typical)	1S - 3S (3.7V - 13.2V)	2S - 6S (7.4V - 26.4V)

Why Spend an Extra $200 to Upgrade to the O4 Pro?

After thoroughly comparing the Analog FPV system with the O4 and O4 Pro digital systems, we return to the question posed at the beginning of this article: Is this $200 really worth spending?

For pilots pursuing high-quality visuals and ultimate flight stability, upgrading to the O4 Pro is undoubtedly a worthwhile choice. This $200 investment delivers not only an enhanced visual experience but also more stable video transmission performance and features better suited for modern FPV creation.

A Clearer FPV Viewing Experience

Compared to traditional analog video transmission systems, the DJI O4 Pro captures high-definition video at 4K/120fps and supports 1080p video transmission quality, delivering real-time environmental detail.

This means many users of analog video transmission systems can experience high-definition quality without purchasing additional equipment like GoPro mounts. The extra $200 offsets the cost of buying an action camera and finding weight-saving solutions.

Additionally, for players who enjoy Freestyle or Cinematic FPV, this improvement in image quality will significantly enhance the immersive flying experience. In contrast, the Analog system's image quality is relatively blurry, and under unstable signal conditions, it may exhibit noise or snowy interference, which can negatively impact visibility during flights in complex environments.

O4 Pro Digital System FPV Drone: High-Definition Video Quality, Stable Flight

2. More Stable Digital Video Transmission Signals

Another major advantage of upgrading to the O4 Pro is more stable signal transmission. Digital video transmission maintains clear and stable footage when the signal is strong, reducing interference issues common in analog systems. This is particularly important when flying in urban environments, forests, or areas with dense buildings.

Stable video transmission not only enhances the flying experience but also improves flight safety to some extent, as pilots can continuously receive clear, real-time footage.

3. Better Suited for Aerial Photography and Content Creation

As FPV content creation gains increasing popularity, many individuals are turning to FPV not merely for the thrill of flight, but to capture high-definition footage or produce high-quality creative works—thereby maximizing the value of FPV drones within the aerial photography industry. FPV drones equipped with the O4 Pro digital system deliver high-quality imagery, perfectly meeting this specific demand.

Conlusion

Ultimately, whether the O4 Pro digital system is worth the extra $200 depends entirely on your specific needs. If you do not require high-definition video quality—and are merely engaging in casual recreational flying or practicing aerobatics—a traditional analog system will be more than sufficient to meet your requirements.

If you seek cinematic-grade visuals, lightweight operation without external cameras, and rock-solid signal transmission even in complex urban environments, choosing the O4 Pro digital system is the shortest path to achieving these goals. Therefore, the additional $200 is a highly cost-effective and worthwhile investment for this requirement.
