FPV Drone Batteries: 3S vs 4S vs 6S

Choosing the right battery for your FPV drone is one of the most critical decisions a pilot can make. The battery’s voltage, 3S, 4S, and 6S, directly affects performance, agility, flight time, and even which drone components can safely operate. This guide breaks down the specifications, pros and cons, and best use cases for each type, helping you make an informed choice.

General Specifications of FPV Drone Batteries

Before diving into 3S, 4S, and 6S batteries, it’s important to understand general FPV battery specifications:

1. Voltage (S), Number of cells in series. Higher voltage increases motor speed and power but may require stronger ESCs and motors.

2. Capacity (mAh), Determines how long the battery can power the drone. Higher capacity increases flight time but also adds weight.

3. C-Rating, Maximum safe discharge rate. High-C batteries can deliver more current to motors for high-thrust maneuvers.

4. Weight, Directly affects agility, flight time, and acceleration. Heavier batteries reduce maneuverability but often allow longer flight times.

5. Connector Type, Compatibility with the drone’s power system (XT30, XT60, XT90, etc.)

Understanding these basics will make it easier to compare 3S, 4S, and 6S lipo batteries in terms of suitability for different flying styles and fpv drones.

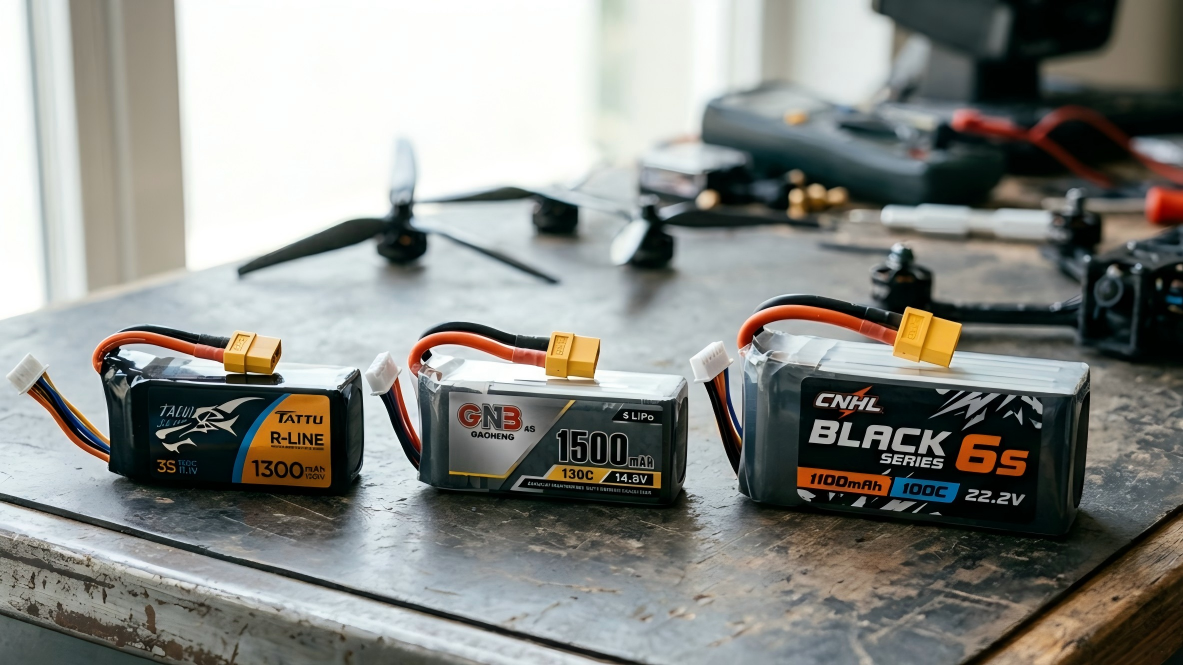

Fig. 1 3S VS 4S VS 6S Batteries

3S FPV Batteries: Lightweight and Beginner-Friendly

3S batteries, producing around 11.1 volts, are the lightest and easiest to handle. They are ideal for smaller drones, micro or 3-inch builds, and beginner pilots. The lower voltage output reduces stress on motors and ESCs, making FPV drones easier to control and less prone to overheating. Their light weight improves agility, allowing for smooth, precise maneuvers and indoor flying.

The downside of 3S batteries is limited thrust and top-end speed. For heavier freestyle or 5-inch FPV drones, they may struggle to provide the power needed for aggressive maneuvers. Flight times are generally shorter if paired with larger drones because the motors must work harder to lift the weight. Despite this, 3S batteries are a cost-effective option for beginners or casual pilots looking for a predictable, controlled flight experience.

4S FPV Batteries: The Balanced Choice

The four-cell batteries provide 14.8 volts and represent a good combination of efficiency and weight. They are the best choice for 5-inch freestyle and racing drones. With an extra voltage, the motors become stronger and can produce more thrust, allowing the aircraft to take off quickly and execute difficult maneuvers without burning out the motors.

In most cases, a four-cell battery represents the right balance for intermediate pilots. In comparison with the 3S, 4S batteries add a bit more weight to a drone and make the aircraft less maneuverable but increase its performance greatly. As a rule, the 4S batteries allow pilots to use larger motors with higher KV. For this reason, these batteries are a great choice for pilots who like aggressive freestyle maneuvers or competitive races and who have medium or heavy drones.

However, there is a small problem with 4S batteries since you will have to get ESCs that can handle higher voltage, and they cost a little bit more than 3S ones. However, it does not matter much for intermediate pilots.

6S FPV Batteries: Maximum Power and Performance

The voltage of 6S batteries is about 22.2V and they are made for maximum thrust and top speeds. These batteries are commonly found in high-end race fpv drones or freestyle builds where the drone has to fly at its best. Due to the high voltage, the pilots have the ability to perform high-acceleration and extreme maneuvers which are impossible on other low-voltage batteries.

Although 6S batteries are great for high performances, they are also extremely heavy and expensive. The increased weight affects maneuverability especially for lightweight drones while the high voltage may not suit every motor and ESC. Flight times will also decrease during aggressive flights because the power output from the battery will deplete the battery faster.

6S batteries should only be used by skilled pilots that are performing advanced tricks or have built powerful and heavy freestyle drones.

Fig. 2 Droneer FPV Drone with Batteries

Comparison Table: 3S vs 4S vs 6S Batteries

Feature	3S Battery	4S Battery	6S Battery
Voltage	~11.1V	~14.8V	~22.2V
Typical Capacity	850–1500 mAh	1300–1800 mAh	1300–1600 mAh
Weight	100–160g	150–250g	200–300g
Power Output	Low	Moderate	High
Motor Compatibility	Low KV / Small FPV Drones	Most 5-inch Freestyle / Racing	Medium-Low KV / High Performance Racing or Heavy Builds
Flight Time	Longer, smooth flight	Balanced	Shorter bursts under high load
Agility	Very high	High	Slightly reduced due to weight
Cost	Most affordable	Moderate	Most expensive
Pros	Lightweight, beginner-friendly, smooth flight	Balanced power and flight time, versatile	Maximum speed and thrust, high-performance builds
Cons	Limited top speed and thrust	Slightly heavier than 3S	Heaviest, requires compatible motors/ESCs, expensive
Best Use Case	Micro drones, indoor flying, beginner-friendly	Standard 5-inch freestyle, intermediate racing	Heavy freestyle, competitive racing, experienced pilots



Choosing the Right Battery for FPV Drones

Choosing the appropriate battery takes into account the size of your FPV drone, the specifications of the motors, as well as your style of flying.

For small-size and micro builds, using the 3S battery is preferable because of its lightweight and smooth performance. The standard 5-inch freestyle or racing drone will work with a 4S battery since such a configuration allows combining the aspects of thrust, flight time, and agility. Performance-based and heavy builds are likely to need a 6S battery due to its ability to allow fast top speed and aggressiveness.

The flying style is important too. For novice and recreational users, it would be wise to choose smoother control and greater flight time, and that will be provided by a 3S or 4S battery. On the other hand, advanced pilots looking to fly aggressively in freestyle or competition format are better off with a 6S battery, although they have to make sure that motors, ESCs, and other parts of the frame can take on the challenge.

It all boils down to weighing the pros and cons of different types of batteries, and choosing based on the desired power and performance.

Fig. 3 FPV Drone with Battery

Conclusion

Understanding the differences between 3S, 4S, and 6S batteries is crucial for FPV pilots. Each type offers distinct advantages and limitations: 3S for lightweight, beginner-friendly flying; 4S for versatile, balanced performance; and 6S for extreme speed and power.
